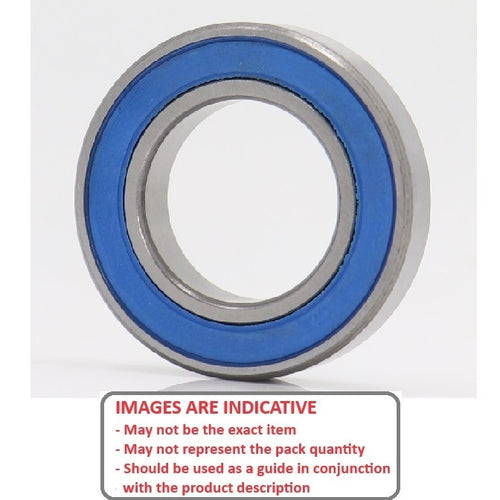

6702-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
15.000
mm
(Equiv. 0.591 in.) - OD (D)
21.000
mm
(Equiv. 0.827 in.) - Width (B)
4.000
mm
(Equiv. 0.157 in.) - Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6702
- Limiting Speed 9405
- Cage Type Standard
- Static Load Rating KGf 56
- Dynamic Load Rating KGf 91.2
- Radii 0.20 mm
- Inner Shoulder (UI) 16.86mm
- Outer Shoulder (UO) 19.70 mm
- Number of Balls 14
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
