BP0100-0150-0120-DP - Datasheet
MBA
Category Information

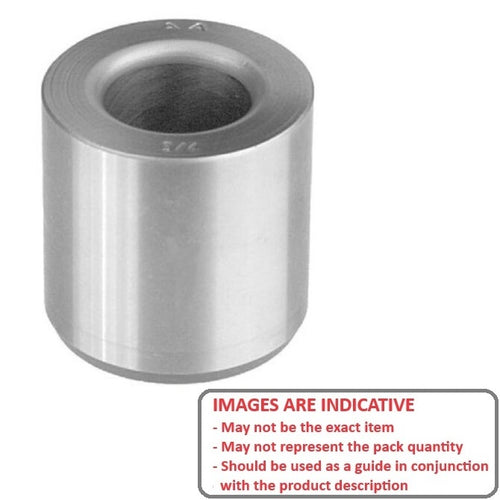

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

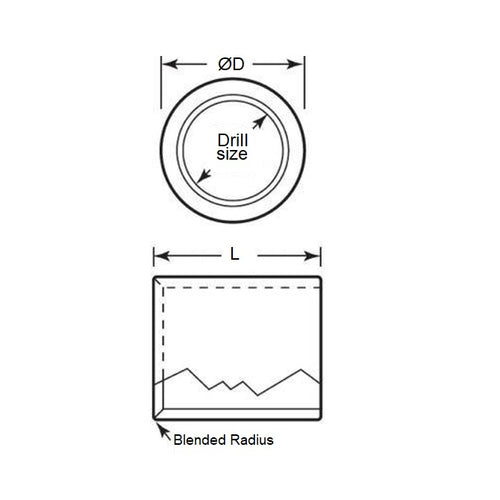

- Outside Diameter (OD)
:
15.000
mm
+ 0.028 / + 0.039
(Equiv. 0.591 in.) - Drill Size
10.000
mm
+ 0.005 / + 0.014
(Equiv. 0.394 in.) - Length
12.000
mm
(Equiv. 0.472 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8486A91
- DM10012
- DM-10012
