MW-1588 - Datasheet

MBA

Category Information

Mounts - Wedge - Light Duty

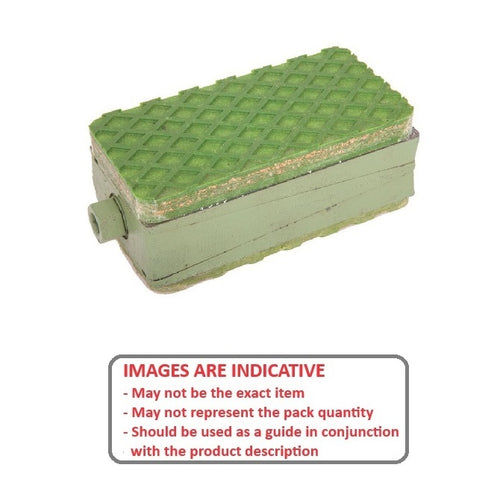

Light Duty Wedge Mounts. Used for leveling all types of production machines.

  • Cast iron with non skid pads on top and bottom.
  • Excellent isolation and dampening properties. Free standing, compact, low construction height.
  • Fine adjustments under full load.
  • Pre-tensioned wedges for transverse stability and self locking wedges for longitudinal stability.

Product Data

  • Max Load : 1587.6 Kg

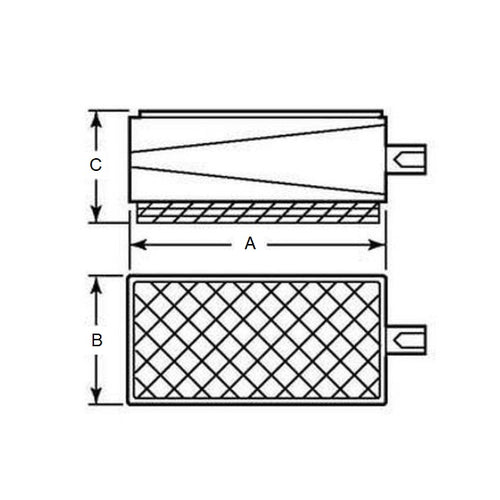

  • Length (A) 203.20 mm
    (Equiv. 8 in.)
  • Width (B) 95.25 mm
    (Equiv. 3.75 in.)
  • Depth (C) 63.50 mm
  • Leveling Range +/-6.35 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • AWM3
  • AWM-3
