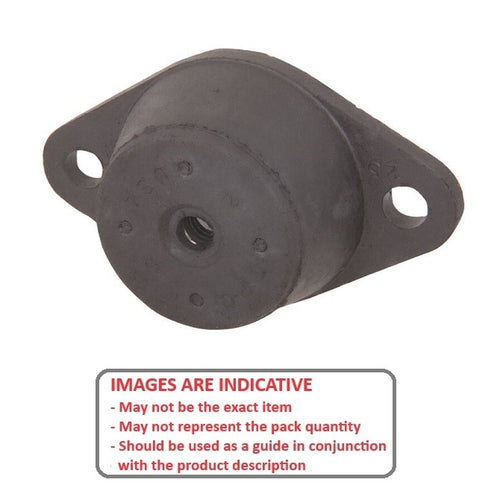

MBN2-0159-29-1270F - Datasheet

MBA

Product Data

• Rated Load : 158.800 kg (lbs)

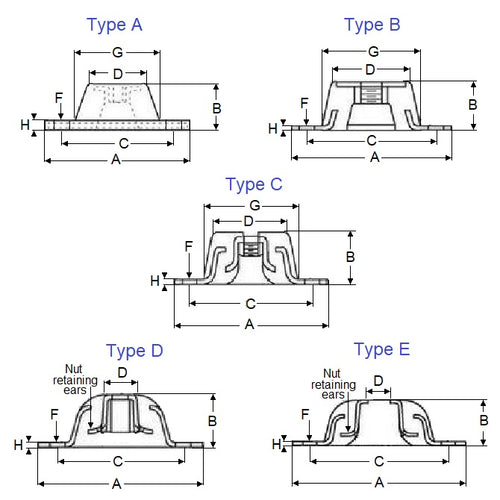

• Style B
• Length (A) 95.250 mm
• Height (B) 28.575 mm
• Bolt Centres (C) 76.200 mm
• D 46.04 mm
• G 55.56 mm
• F 8.73 mm
• H 3.18 mm
• Thread 1/2-20 UNF (12.7mm)
• Durometer 60
• Material Neoprene Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 64875K27
• Reid Tool® KR-60-33
• KR6033
