MSKMBL69RS - Datasheet
MBA
Category Information

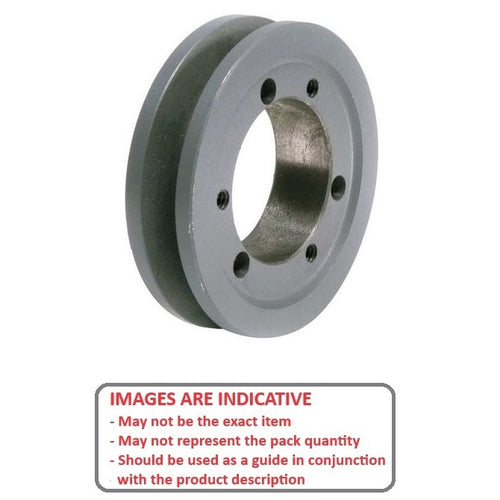

Pulleys - Vee - B or 5L - Single Row For QD BushingSingle Row For QD Bushing B or 5L Vee Pulleys. Cast iron pulleys. QD bushings are used to vary the bore sizes.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

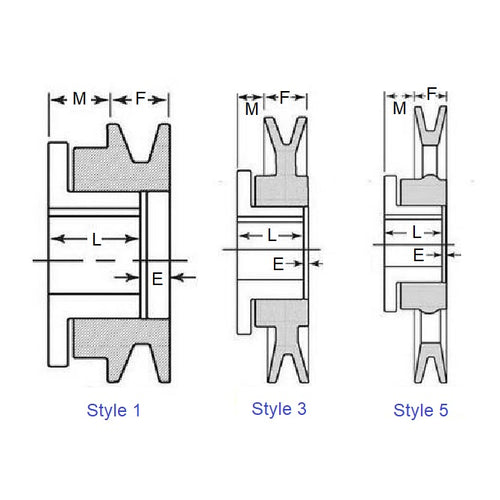

- Pitch Diameter
:
157.48
mm
(Equiv. 6.2 in.) - Style 5A
- Width (F)
23.02
mm
(Equiv. 0.906 in.) - Dimension M 13.49 mm
- Outside Diameter 176.53 mm
- Bush Length (L) 34.13 mm
- Dimension E 2.38 mm
- Bush Style QD Type L
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- MSK-MBL69
- MSKMBL69
