0T-1524-1143-0165-SB - Datasheet
MBA
Category Information

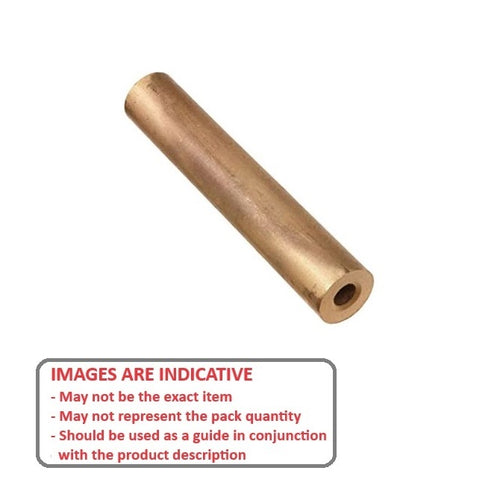

Tube - Round - Sintered BronzeSintered Bronze Round Tube. Oil impregnated sintered bronze tubing - self lubricating. Product will machine to the sizes listed and is supplied will be larger on OD and smaller on bore.
- Sizes listed are FINISHED SIZE. Product supplied will be larger on OD and smaller on ID to allow for machining.
- B438 grade 1, Type 2 - AMS4805-D
- SAE 841 Type 1, Class A
Product Data
- Nominal Outside Diameter
:
152.40
mm
+ 0.80 / + 3.20
(Equiv. 6 in.) - Nominal Inside Diameter
114.30
mm
- 0.80 / - 3.20
(Equiv. 4.5 in.) - Length (L)
165.1
mm
(Equiv. 6.5 in.) - Material Bronze SAE 841 Sintered
Product Compliance and Data
Additional Resources
Cross References
- Oilite CC-6003
- Oilube CC-6003
- CC6003
- A7B4SCB3648
- A7B4-SCB3648
