MNP-001-152-W - Datasheet
MBA
Category Information

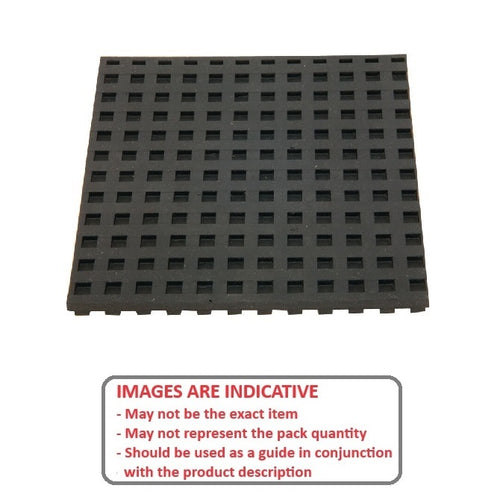

Mounts - Neoprene Pads - Waffle PatternWaffle Pattern Neoprene Pads Mounts. Provides a versatile, inexpensive way to isolate shock, vibration and reduce noise levels.
- Simply lift the machine and slide the pads under each foot.
- Provides firm footing to floor and equipment.
- Oil resistant neoprene rubber
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

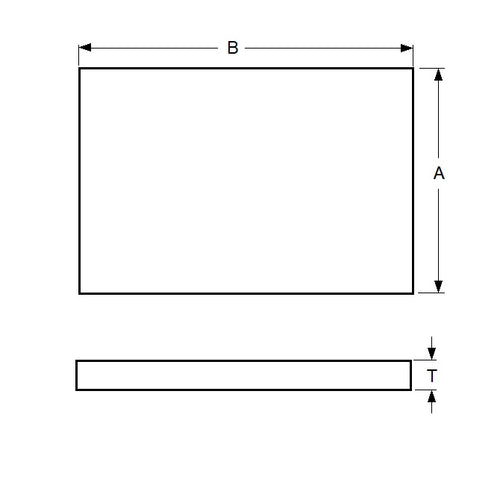

- Size
:
152.40 x 152.40
mm
(Equiv. 6 in.) - Load Range 1.0 - 25.0 psi
- Thickness
7.938
mm
(Equiv. 0.313 in.) - Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- PM5
- PM-5
