Miniature Bearings Australia

0T-1500-0762-0165-SB - Datasheet

MBA

Category Information

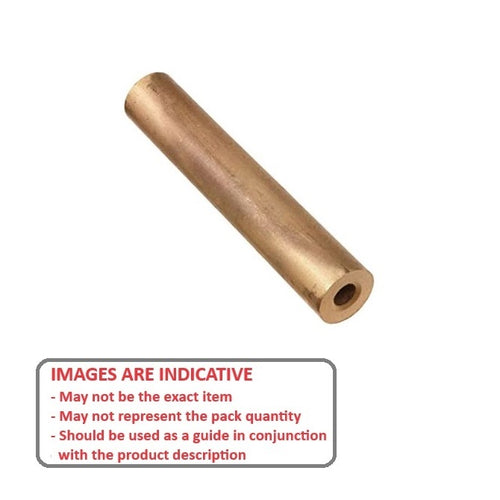

Sintered Bronze Round Tube. Oil impregnated sintered bronze tubing - self lubricating. Product will machine to the sizes listed and is supplied will be larger on OD and smaller on bore.

Sizes listed are FINISHED SIZE. Product supplied will be larger on OD and smaller on ID to allow for machining.
B438 grade 1, Type 2 - AMS4805-D
SAE 841 Type 1, Class A

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Nominal Outside Diameter : 150.00 mm _{+ 0.80 / + 3.20}
(Equiv. 5.906 in.)
Nominal Inside Diameter 76.20 mm _{- 0.80 / - 3.20}
(Equiv. 3 in.)
Length (L) 165.1 mm
(Equiv. 6.5 in.)
Info This is 6 inch OD with a small dent. Suitable to machine to 150mm or less
Material Bronze SAE 841 Sintered

Country of Origin: US
