WLB150-203-42BO - Datasheet
MBA
Category Information

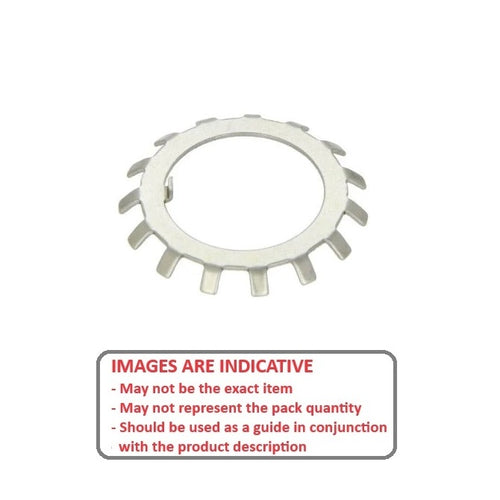

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data

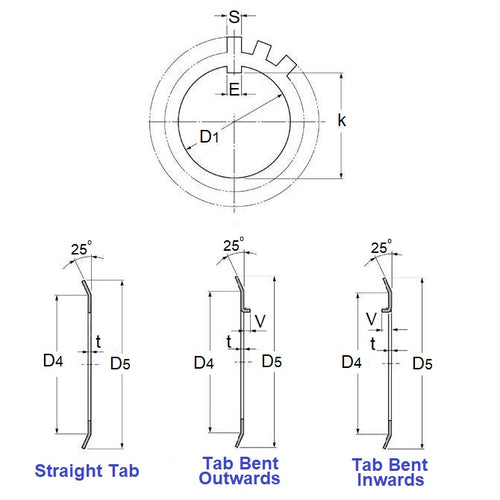

- Approximate ID (D1)
:
150.00
mm
(Equiv. 5.906 in.) - Approx OD (D5)
203.20
mm
(Equiv. 8 in.) - Tabs 19 Nr.
- thickness (t) 4.2 mm
- Matching Locknut N-30
- Inner Tab Type Bent Outwards
- Series W / Standard Duty
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- W30
