MLM-159C-203-S4HY-100 - Datasheet
MBA
Category Information

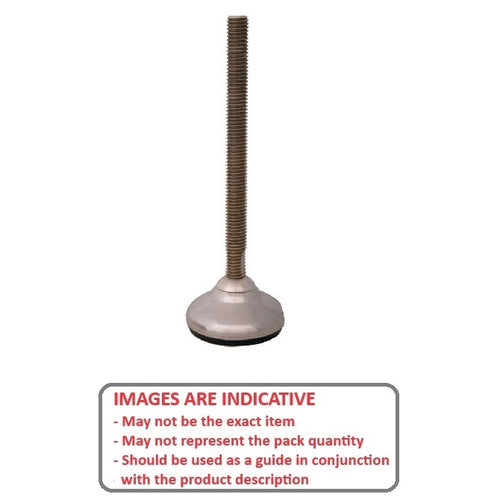

Mounts - Levelling Studded - Hygienic - 304 Stainless304 Stainless Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Rubber base is vulcanised to the housing and contains no voids for a completely hygienic seal.
- Full range of motion up to 10 degrees.
- Pivot provides secure footing and vibration control.
- Meets USDA requirements for food processing equipment.
Product Data

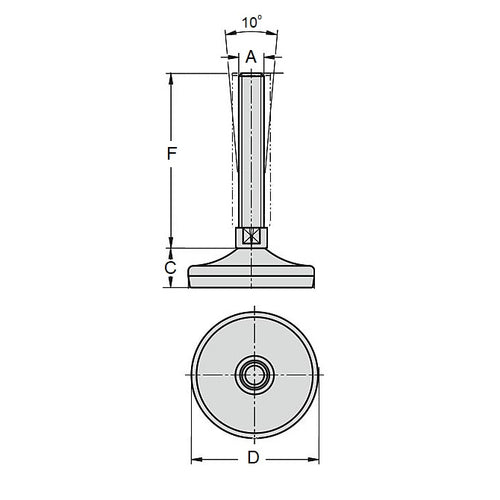

- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D) 100.1 mm
- Foot Height (C) 34.0 mm
- Thread Length (F) 203.2 mm
- Base Height (E) 34.0 mm
- Overall Height 237.2 mm
- Load Rating 1500 Kg
- 10
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SX-54
- SX54
- MLM1500159C203S4
- MLM1500203159CS4
