MLM-127C-152-S4HY - Datasheet
MBA
Category Information

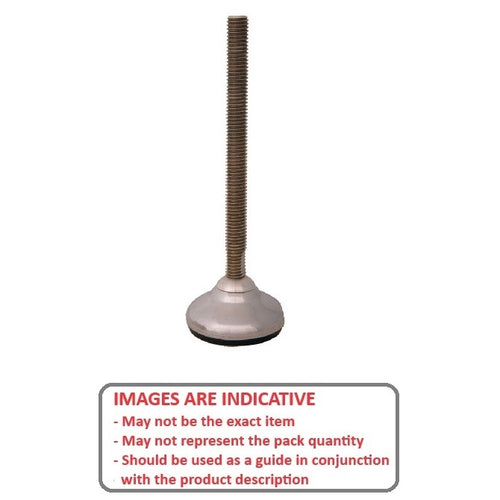

Mounts - Levelling Studded - Hygienic - 304 Stainless304 Stainless Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.
- An expanded range may be available on special order. Please enquire.
- Rubber base is vulcanised to the housing and contains no voids for a completely hygienic seal.
- Full range of motion up to 10 degrees.
- Pivot provides secure footing and vibration control.
- Meets USDA requirements for food processing equipment.
Product Data

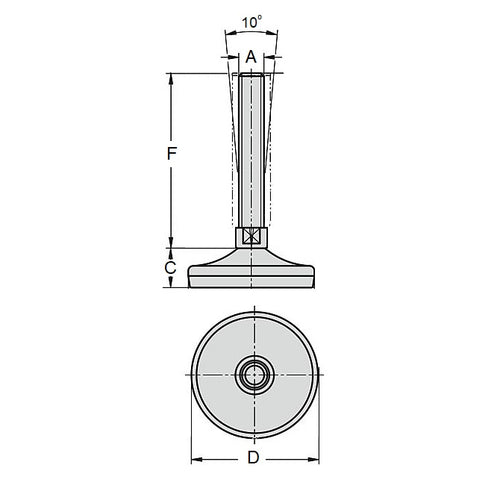

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
100.1
mm
(Equiv. 3.941 in.) - Foot Height (C)
34.0
mm
(Equiv. 1.339 in.) - Thread Length (F) 152.4 mm
- Base Height (E) 34.0 mm
- Overall Height 186.4 mm
- Load Rating 1500 Kg
- 10
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SX-52
- SX52
- MLM1500127C152S4
- MLM1500152127CS4
