CMF150-55-160M-R70 - Datasheet
MBA
Category Information

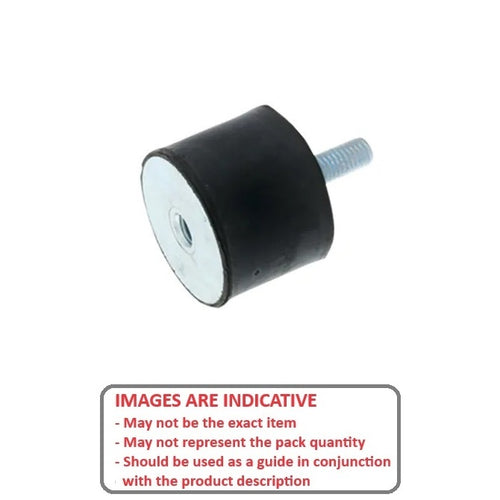

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

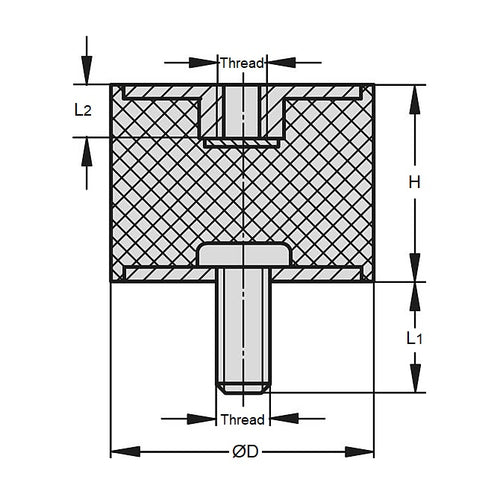

- Nom. Body Diameter (D)
:
150.0
mm
(Equiv. 5.906 in.) - Body Height (H)
55.0
mm
(Equiv. 2.165 in.) - Thread Size M16x2.00
- Shore Hardness 70
- Thread Length/Depth (L1/L2) 41.0 / 14.0 mm
- Compression Load 1296 (2773) Kg (lbs)
- Deflection 4.7 mm
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 15055MF4170
- 15055MF41-70
