G008P-015-M05-040-020-A - Datasheet

MBA

Category Information

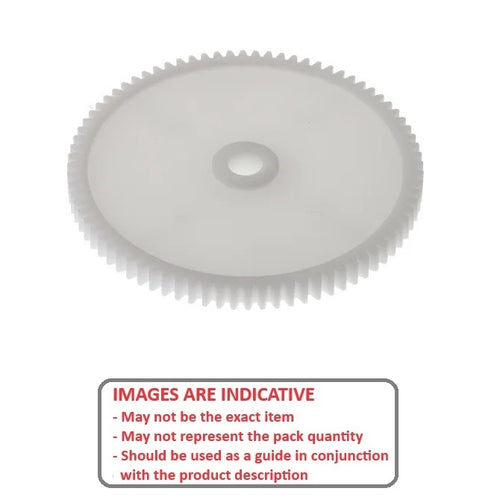

Gears - Spur - Hubless - Module 0.5 - Plastic

Plastic Module 0.5 Hubless Spur Gears. PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 0.5mm per tooth
  • Module 0.5. Approximately 1.57mm between the teeth.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

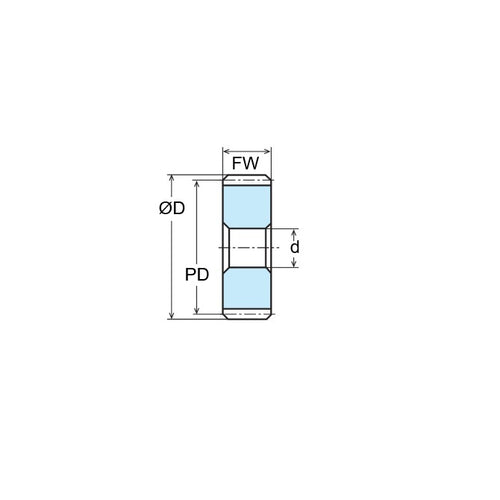

  • Number of Teeth : 15
  • Pitch Circle Diameter (PD) 7.50 mm
    (Equiv. 0.295 in.)
  • Bore (d) 2.000 mm
    (Equiv. 0.079 in.)
  • Outside Diameter (OD) 8.500 mm
  • Face Width (FW) 4.00 mm
  • Type Hubless
  • Quality Commercial - Molded
  • Material Acetal
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • G008B15M05040020AN
