Miniature Bearings Australia
CCE-01588-B - Datasheet
MBA
Category Information

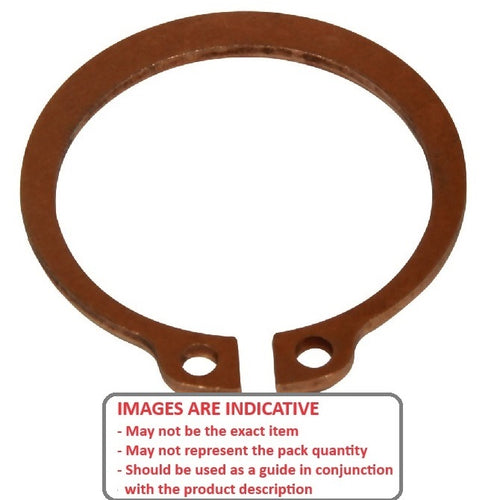

Retaining Rings - External - Circlips - Standard - Beryllium CopperBeryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
Product Data
- Shaft Diameter (Ds)
:
15.88
mm
(Equiv. 0.625 in.) - Clip Thickness (T)
0.89
mm
+/- 0.076
(Equiv. 0.035 in.) - Groove Dia. (Dg)
14.94
mm
+/- 0.051
(Equiv. 0.588 in.) - Approx. Loose Circlip ID (A) 14.70 mm
- Radial Wall (S) min/max B (Square Ends) mm
- Groove Width (W) 1.00 mm
- Standard MIL-16624
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-062-BC
- SH062BC
- N1400-0062BC
- N14000062BC
