ECB-0123-0159-C - Datasheet
MBA
Category Information

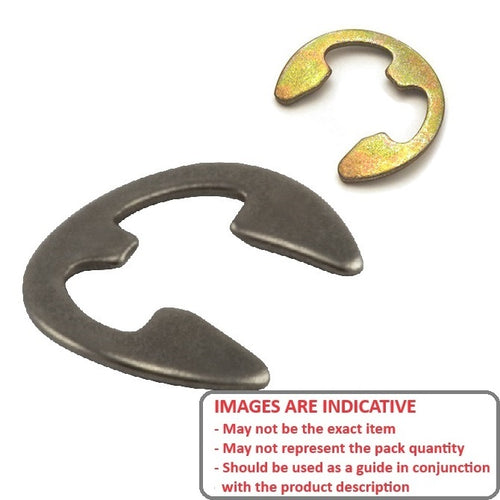

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data

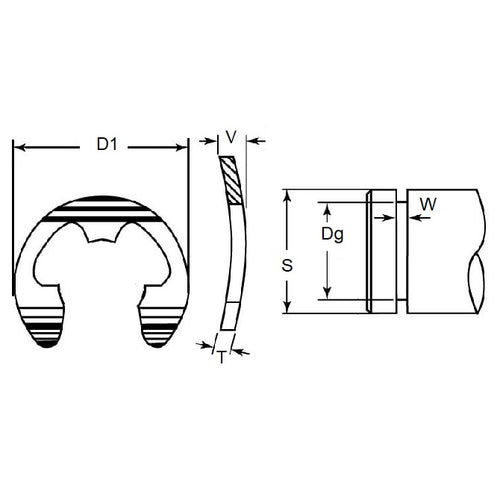

- Minimum Rec. Shaft Dia (S)
:
15.88
mm
(Equiv. 0.625 in.) - Groove Dia. (Dg)
12.32
mm
+ 0.102 / - 0.000
(Equiv. 0.485 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.051
(Equiv. 0.05 in.) - Clip OD Loose (D1) 23.88 mm
- Groove Width (W) 1.24 mm
- Ring Width (X) 1.96 mm
- Force Required to Flatten 37.9 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98398A140
- N1501-0062
- N15010062
