Miniature Bearings Australia
ECL-0123-0159-S15 - Datasheet
MBA
Category Information

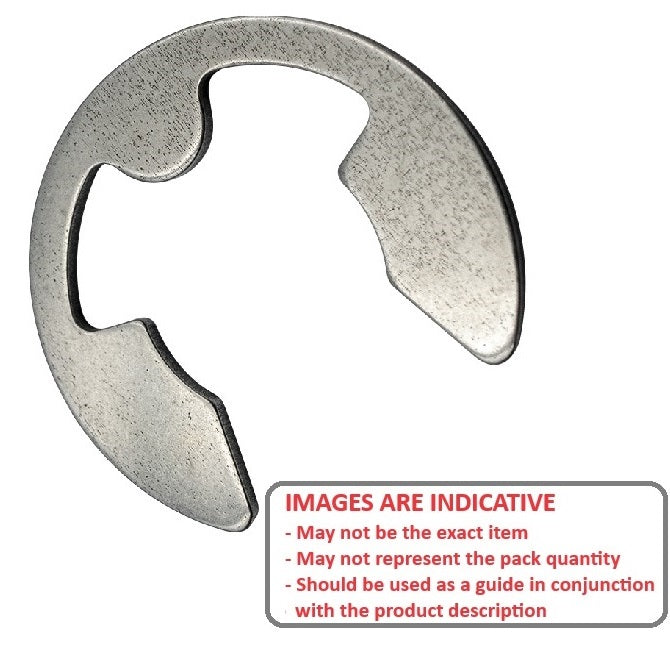

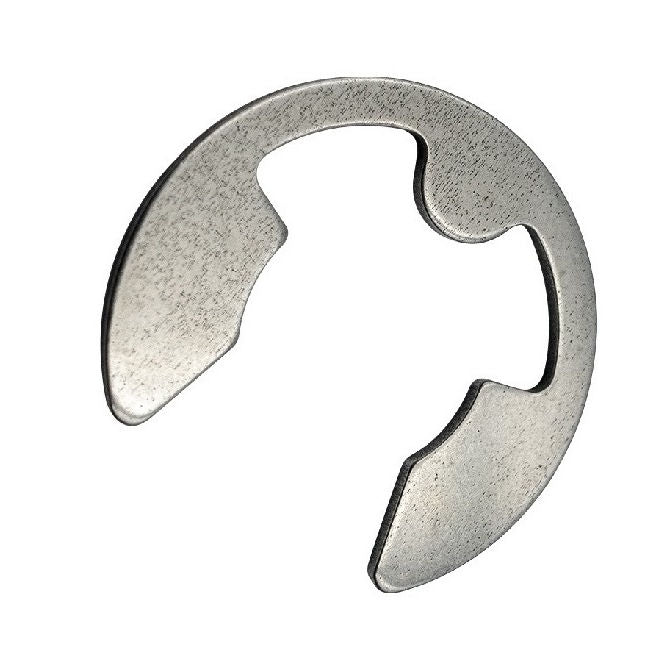

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data

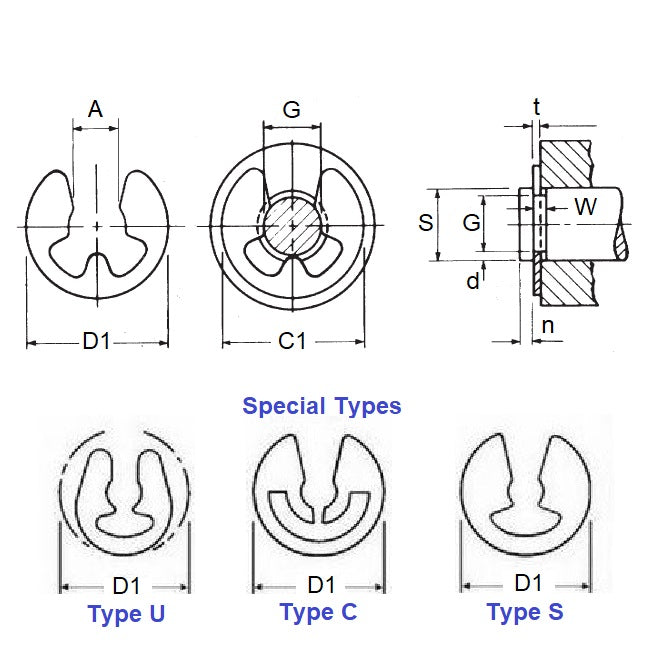

- Minimum Rec. Shaft Dia (S)
:
15.88
mm
+ 3.05 / - 0.00
(Equiv. 0.625 in.) - Groove Dia. (Dg)
12.32
mm
+ 0.076 / - 0.000
(Equiv. 0.485 in.) - Clip Thickness (T)
1.07
mm
+/ - 0.050
(Equiv. 0.042 in.) - Clip OD Loose (D1) 23.88 mm
- Groove Width (W) 1.17 mm
- Maximum Rec. Shaft Dia (S) 18.93
- Clip OD in groove (C1) 24.38 mm
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-062-SS
- 98408A140
- Ellison E-062-SS
- NoCor E-062-SS
- Rotorclip E-062-SS
- 5133062SS
- E062SS
- N15000062KSF
- N1500-0062KSF
- N1500062SS
- N1500-062-SS
- S73LW2ER13362
- S73LW2-ER133-62
