ECL-0123-0159-C - Datasheet
MBA
Category Information

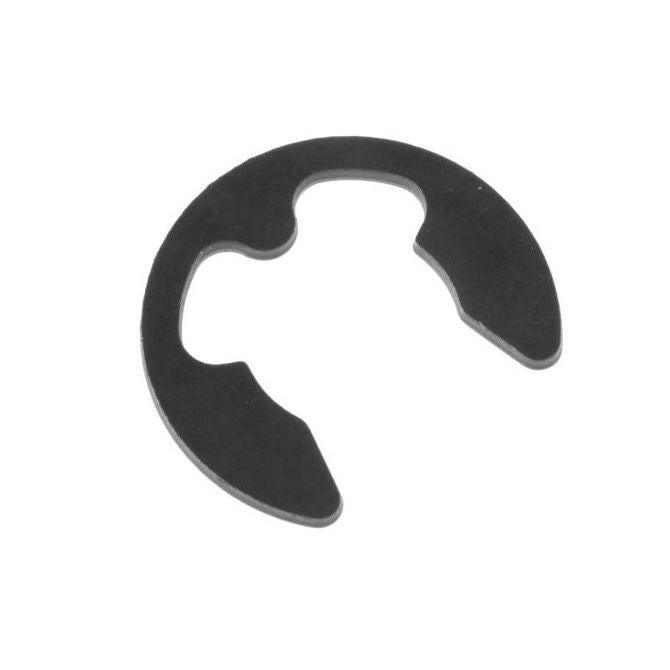

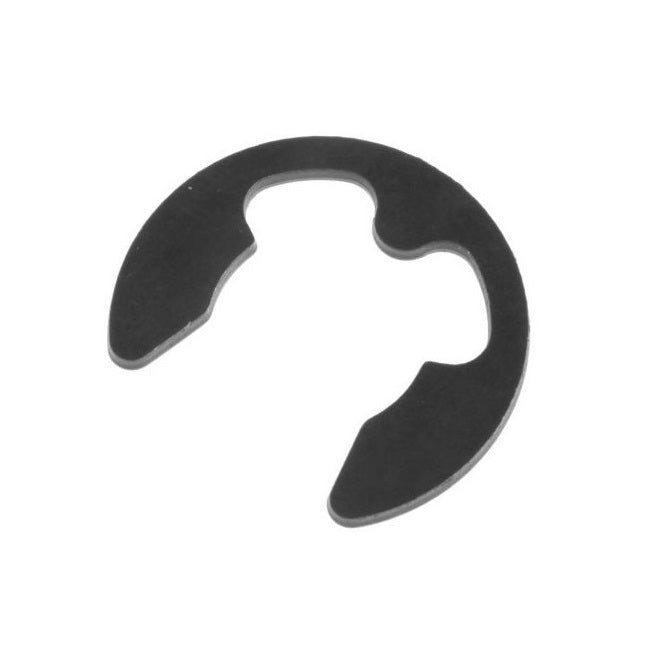

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
15.88
mm
+ 3.05 / - 0.00
(Equiv. 0.625 in.) - Groove Dia. (Dg)
12.32
mm
+ 0.076 / - 0.000
(Equiv. 0.485 in.) - Clip Thickness (T)
1.07
mm
+/ - 0.050
(Equiv. 0.042 in.) - Clip OD Loose (D1) 23.88 mm
- Groove Width (W) 1.17 mm
- Maximum Rec. Shaft Dia (S) 18.93
- Clip OD in groove (C1) 24.38 mm
- Standard MIL-16633
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-062
- 97431A350
- Ellison E-062
- NoCor E-062
- Rotorclip E-062
- Small Parts REE-10
- REE10
- 5133062
- E062
- N1500-062
- N1500062
- N15000062
- N1500-0062
