Miniature Bearings Australia
BL-01588-R87A - Datasheet
MBA
Category Information
Balls - Rubber - Santoprene 87ASantoprene 87A Rubber Balls. A high performance thermoplastic created by cross linking EPDM rubber with Polypropylene. As an elastomer plastic it is flexible, light weight, and has very good abrasion resistance. It also has good resistance to many acids, bases and aqueous solutions.
- Rubber ball grades are not the same as those for precision balls
- It holds up well in both extreme hot and cold environments which can make it preferred over rubber. Common uses include; grips, knobs, handles, gaskets, and ball check valves.
- Specific Gravity .96 g/cc. Hardness, Shore 87A
- Tensile Strength 2550 psi. Melting Point 400 F
- Rohs Compliant and FDA compliant.
- This grade is slightly softer than the 40D grade. Colour Beige.
Product Data

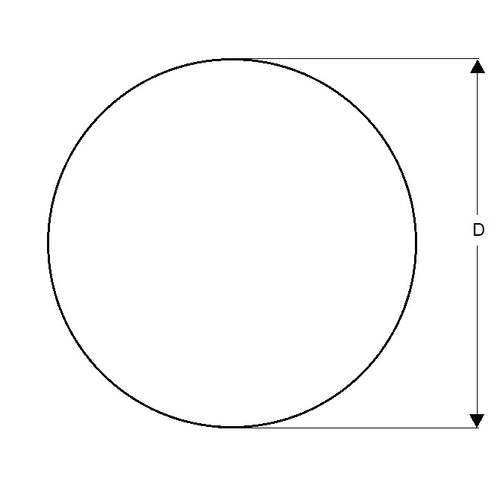

- Diameter (D)
:
15.88
mm
+/- 0.051
(Equiv. 0.625 in.) - Material Santoprene Rubber
- Precision ISO 3290 Grade 3
- Hardness Shore 87A
- Properties Excellent for liquid level float applications.
- Colour Beige
- Specific Gravity 0.96
- Material Santoprene Rubber
