0T-0159-STLN-AL-0880 - Datasheet
MBA
Category Information

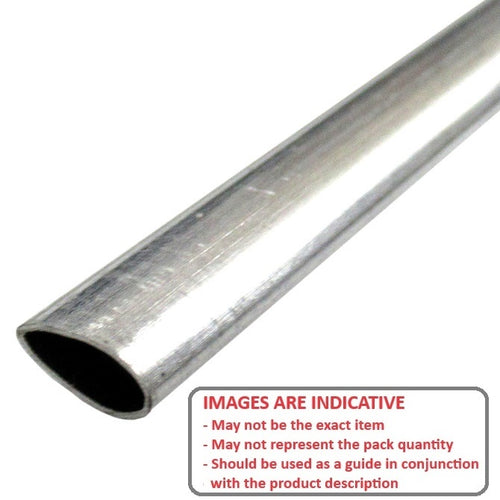

Tube - Streamline - AluminiumAluminium Streamline Tube. Teardrop shaped soft aluminium tubing
- Streamline tubing are available in many different materials and lengths. Enables easier bending. Great for tight applications.
- Elongated shape that minimizes drag when moving through a fluid (like air or water).
- Includes K&S Metals range and more.
Product Data

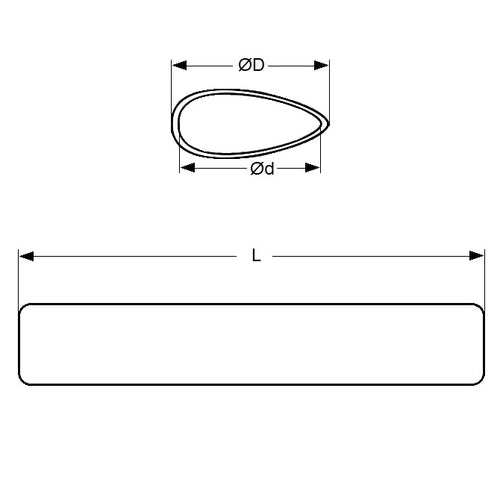

- Outside Width (Ow)
:
15.88
mm
(Equiv. 0.625 in.) - Inside Width (Iw)
12.80
mm
+/- 1.0
(Equiv. 0.504 in.) - Length (L) 880 +/- 0.2
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- KSE KS1104
