Miniature Bearings Australia
CLP-159-1524-CZ-H - Datasheet
MBA
Category Information

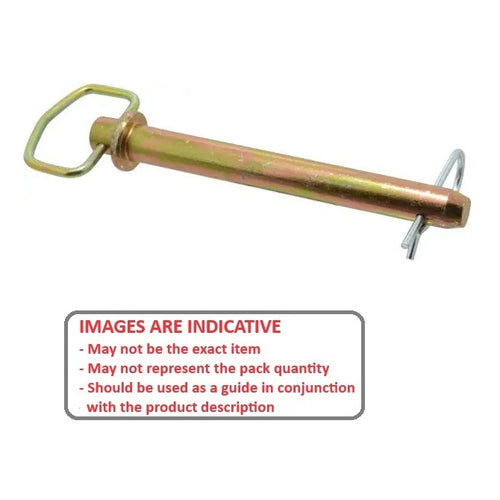

Pins - Clevis - Handle - Straight - Pin Locking - PlainPlain Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Includes zinc plated R-Clip
Product Data

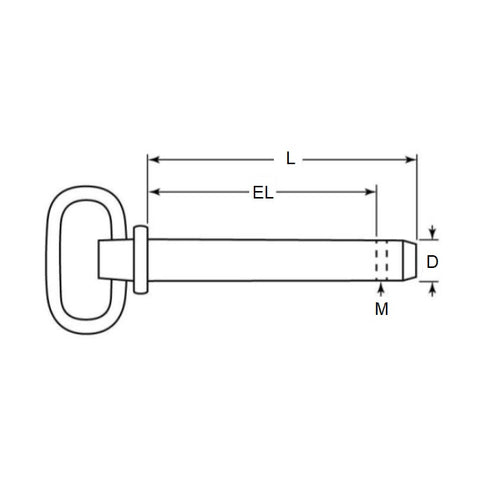

- Nominal Pin Diameter (D)
:
15.88
mm
- 0.10 / - 0.23
(Equiv. 0.625 in.) - Grip Length (EL)
152.40
mm
+ 0.51 / - 0.00
(Equiv. 6 in.) - Pin Finish Zinc Plated
- Handle Finish Zinc Plated
- Handle Material Heat treated Steel
- Material Carbon Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP554
- CLP-554
- CLP1591524ZH
