CLP-159-1016-CZ-HPC - Datasheet
MBA
Category Information

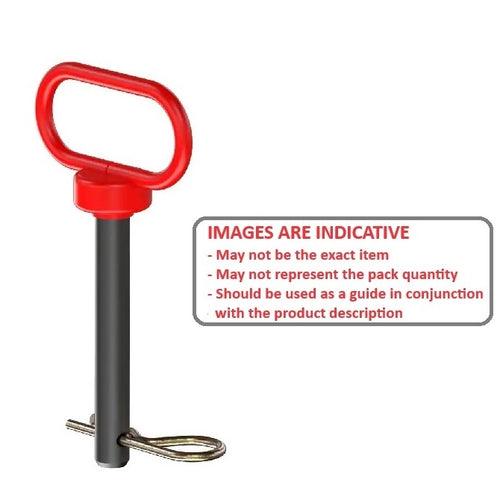

Pins - Clevis - Handle - Straight - Pin Locking - Powder CoatedPowder Coated Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated high tensile.
- Includes zinc plated R-Clip
Product Data

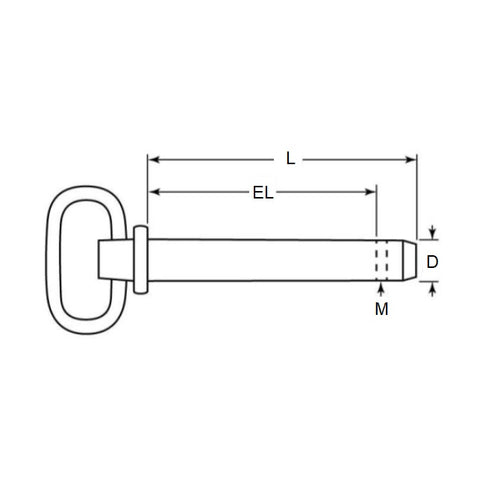

- Nominal Pin Diameter (D)
:
15.88
mm
- 0.10 / - 0.23
(Equiv. 0.625 in.) - Grip Length (EL)
101.60
mm
+ 0.51 / - 0.00
(Equiv. 4 in.) - Pin Finish Zinc Plated
- 3.8
- Handle Finish RCL-032-065-Z
- Handle Material Red Vinyl
- Material High Tensile Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- WMG-15
- WMG15
- CLP1591016ZHPC
