Miniature Bearings Australia
BP0095-0159-0254-DP - Datasheet
MBA
Category Information

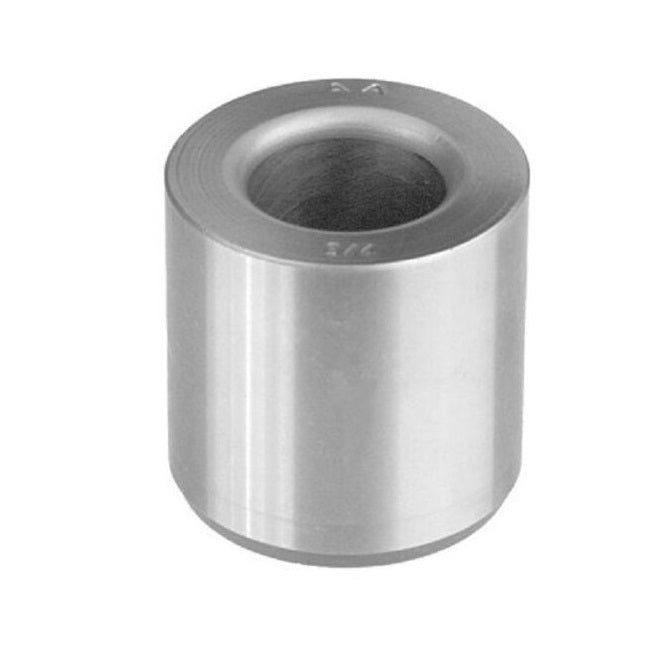

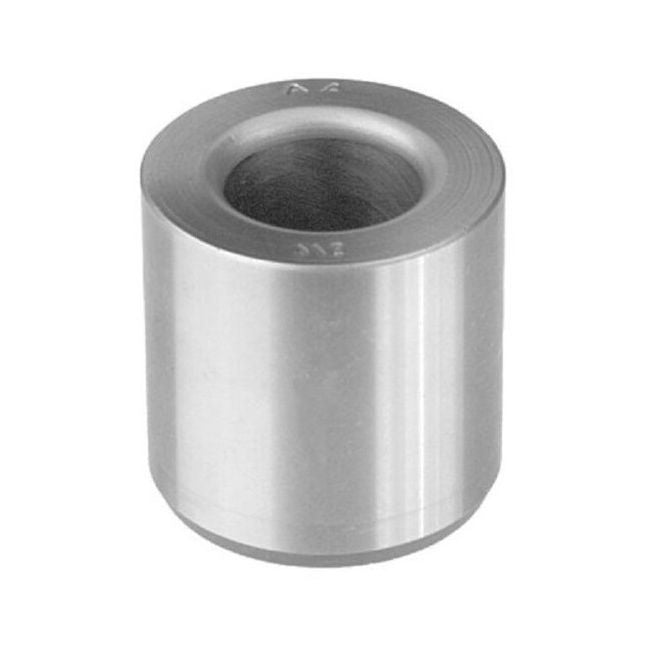

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
15.875
mm
+ 0.003 / + 0.0127
(Equiv. 0.625 in.) - Drill Size
9.525
mm
+ 0.036 / + 0.043
(Equiv. 0.375 in.) - Length
25.400
mm
(Equiv. 1 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8491A402
- BP-34270
- BP34270
