W0159-SQ-051-064-C - Datasheet
MBA
Category Information

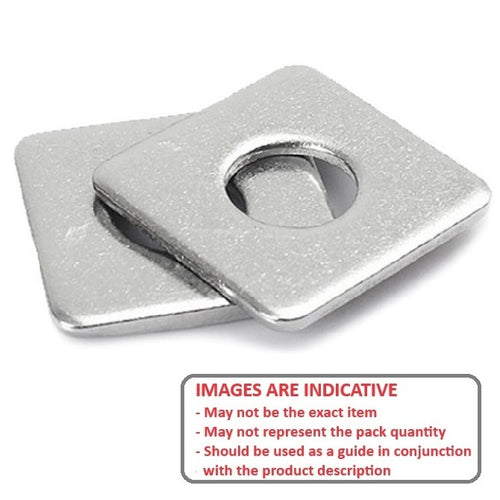

Washers - Square - Heavy Duty - SteelSteel Heavy Duty Square Washers. Zinc plated and carbon steel selection.
- Square washers are designed to distribute loads and prevent rotation when placed in a square recess or used with square neck screws.
- Often used in structural applications where greater stability and load distribution are needed than what a standard round washer provides.
Product Data

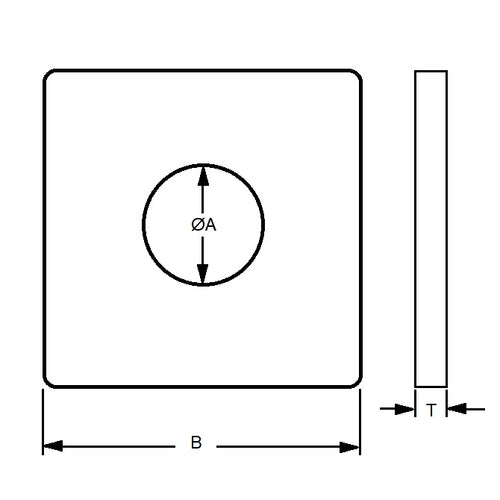

- Nominal Inside Diameter (A) : 15.875 mm
- Outside Length (B) 50.8 mm
- Thickness 6.35 mm
- Actual ID (Ref) 16.669 mm
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- 91128A125
- Reid Tool® JSW-34
- JSW34
