W0159-SQ-051-064-S4 - Datasheet
MBA
Category Information

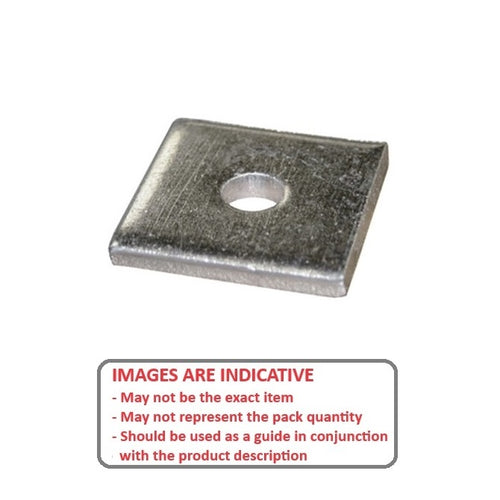

Washers - Square - Heavy Duty - 304 Stainless Steel304 Stainless Steel Heavy Duty Square Washers. 304 stainless steel selection.
- Square washers are designed to distribute loads and prevent rotation when placed in a square recess or used with square neck screws.
- Often used in structural applications where greater stability and load distribution are needed than what a standard round washer provides.
Product Data

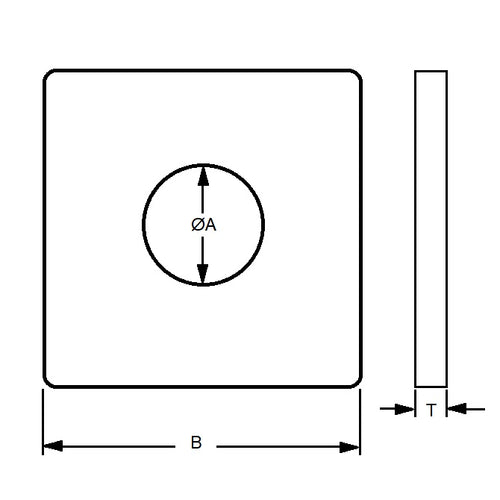

- Nominal Inside Diameter (A) : 15.875 mm
- Outside Length (B) 50.8 mm
- Thickness 6.35 mm
- Actual ID (Ref) 17.463 mm
- Material Stainless Steel 303 PV (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 91122A125
- Reid Tool® ASFW-35
- ASFW35
