COH-01588-038-10-2P-CS - Datasheet
MBA
Category Information

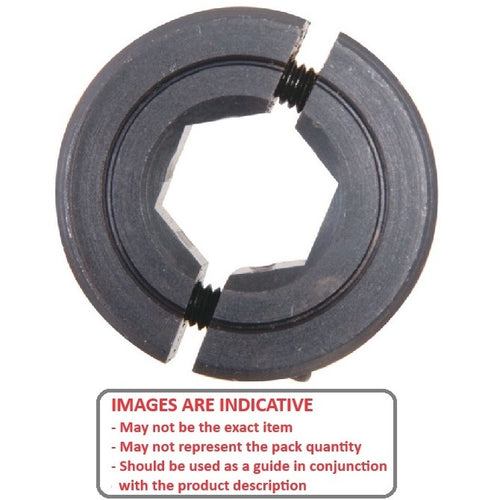

Collars - Hex Bore - Two Piece - SteelSteel Two Piece Hex Bore Collars. This is the main category in this series
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
Product Data
- Suitable Shaft Size (d)
:
15.875
mm
(Equiv. 0.625 in.) - Outside Diameter (D)
38.10
mm
(Equiv. 1.5 in.) - Overall Width (S)
10.3
mm
(Equiv. 0.406 in.) - Screw Size 10-32 UNF
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- CTC554
- CTC-554
