DP159-038-CH-1E - Datasheet

NoCor

Category Information

Pins - Dowel - Extractable - Carbon Steel

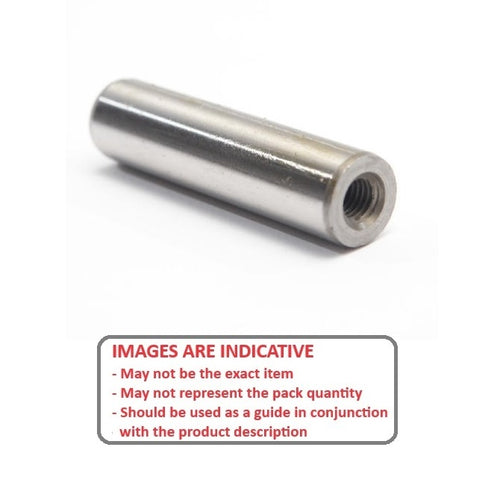

Carbon Steel Extractable Dowel Pins. Hardened and Ground Steel 100 Cr6. Din 7979.

  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • An expanded range may be available on special order. Please enquire.

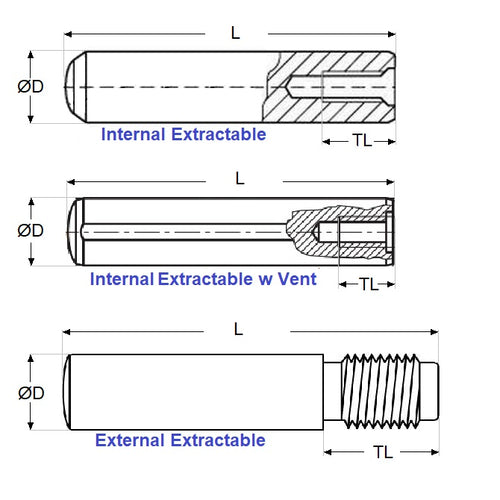

  • Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
  • Hardness 55-62 HRC, HV550-650
  • Extractable pins may or may not have a flat to vent pressure when pulling

Product Data

  • Diameter (D) : 15.875 mm + 0.007 / + 0.018
    (Equiv. 0.625 in.)
  • Length (L) 38.10 mm +/- 0.500
    (Equiv. 1.5 in.)
  • Approx. Overall Length 38.10 mm +/ - 0.500
    (Equiv. 1.5 in.)
  • Type 1 (Chamfer One End)
  • Thread Size 1/4-20
  • DIN 6325
  • Material Carbon Steel Rc 58-62
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PD170
  • PD-170
