R10D-NR-ECO - Datasheet
ECO
Category Information

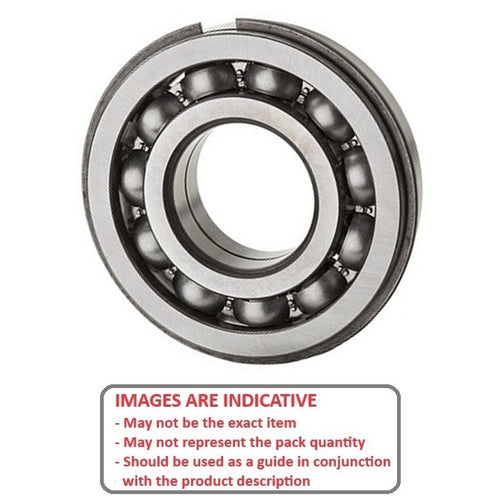

Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data

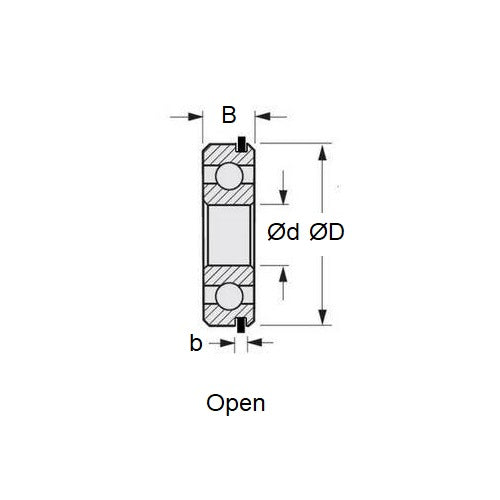

This bearing has a snap ring on the OD and Non ISO Width
- ID (d)
:
15.875
mm
(Equiv. 0.625 in.) - OD (D)
34.925
mm
(Equiv. 1.375 in.) - Width (B)
11.112
mm
(Equiv. 0.437 in.) - Closure Type Open
- Bearing Type Radial with Snp Ring
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R10D
- Limiting Speed 10846.2
- Cage Type Standard
- Static Load Rating KGf 363.8
- Dynamic Load Rating KGf 740
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
