COL-01588-029-13-CZ - Datasheet
MBA
Category Information

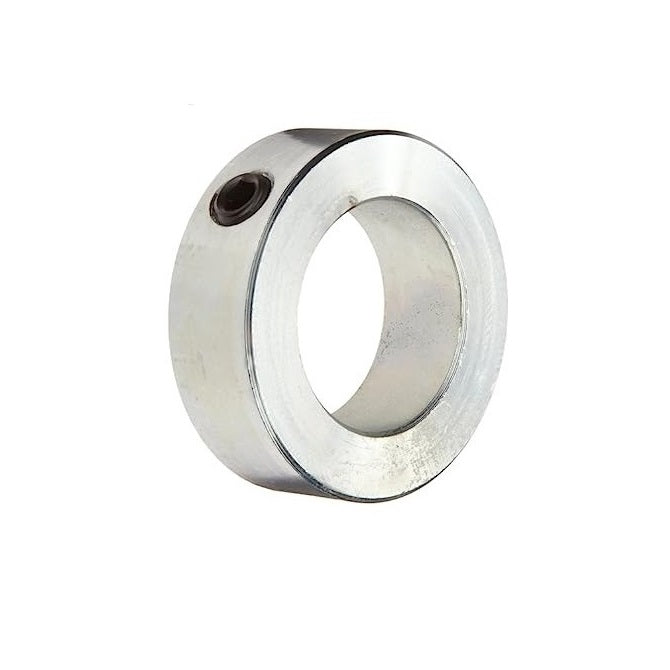

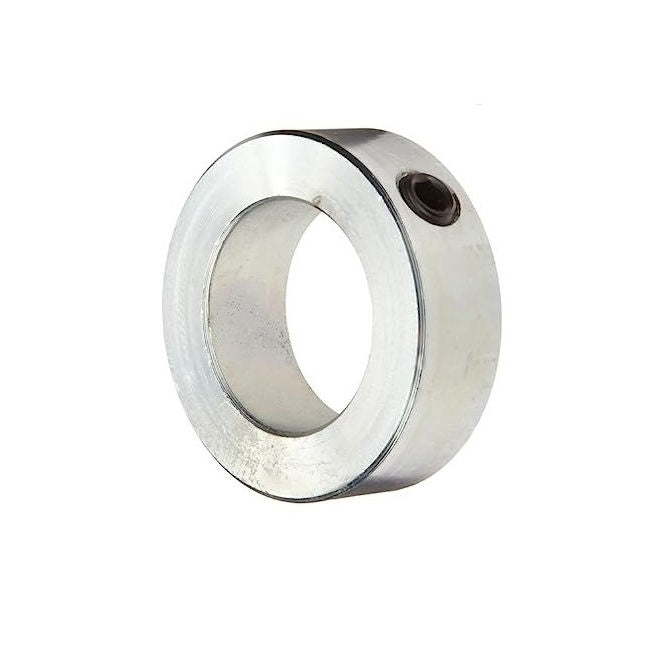

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
15.875
mm
(Equiv. 0.625 in.) - Outside Diameter (D)
28.60
mm
(Equiv. 1.126 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Screw Size 5/16-18 UNC (7.94mm)
- Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K18
- NoCor SC-0625-ZC
- LSC10
- LSC-10
- SC0625ZC
