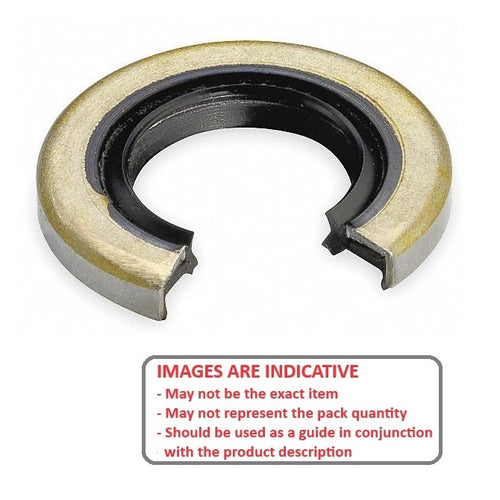

TLM-310RS - Datasheet

MBA

Product Data

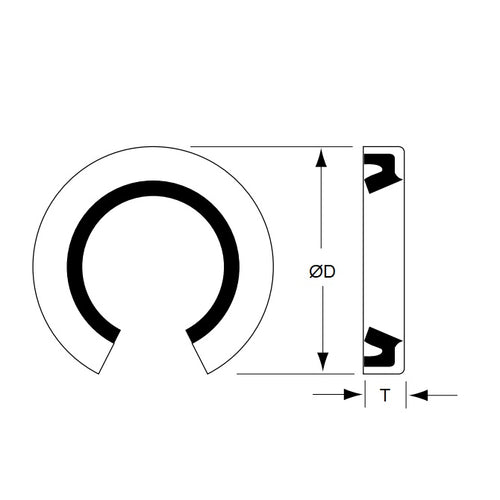

• Inside Diameter : 15.875 mm
• Outside Diameter 28.677 mm
• Thickness (T) 3.175 mm
• Material Nitrile (NBR or BUNA-N)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
