COL-01588-029-13-S3 - Datasheet
MBA
Category Information

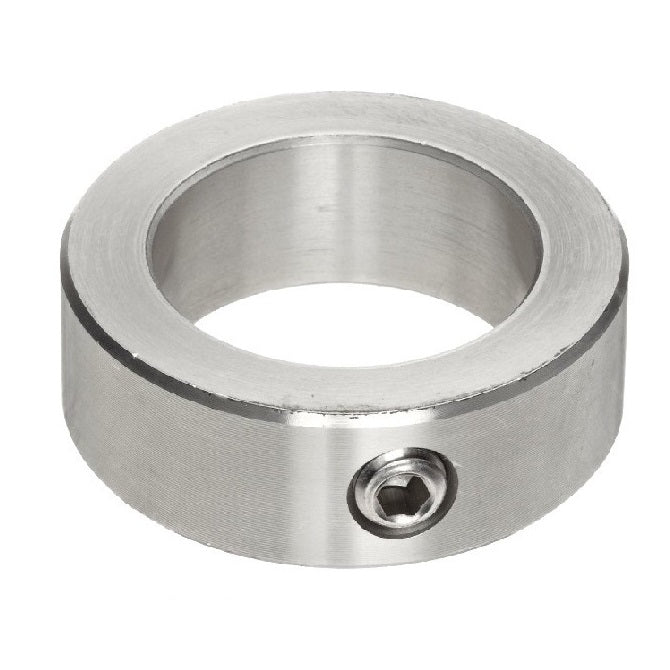

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
15.875
mm
(Equiv. 0.625 in.) - Outside Diameter (D)
28.58
mm
(Equiv. 1.125 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 6462K18
- NoCor SC-0625-SS
- Small Parts SX-10
- SX10
- A7X213620
- A7X2-13620
- LSC10SS
- LSC-10SS
- SC0625SS
