W0159-LI-027-013-CZ - Datasheet

MBA

Category Information

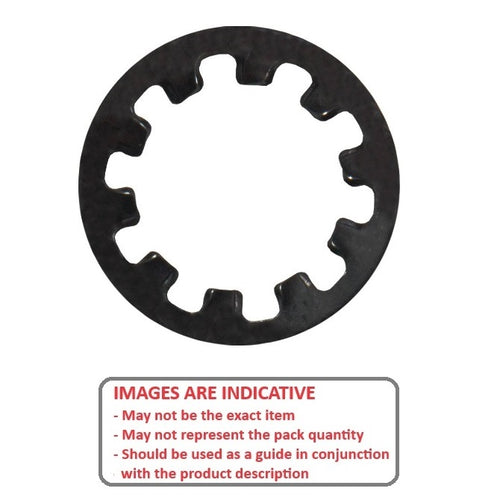

Washers - Lock - Internal Tooth - Spring Steel

Spring Steel Internal Tooth Lock Washers. Spring steel, internal toothed selection.

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.
  • These are not the same as push on retaining rings. This product is not designed to grip a shaft. Search for push on retaining rings if that is what you require.

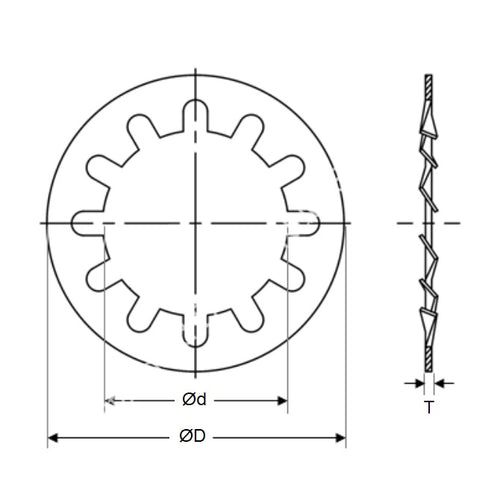

Product Data

  • Nominal Inside Diameter : 15.88 mm
    (Equiv. 0.625 in.)
  • Outside Diameter 27.2 mm
    (Equiv. 1.071 in.)
  • Material Thickness (T) 1.30 mm
    (Equiv. 0.051 in.)
  • Nominal Screw Size 5/8
  • Actual ID (Ref) 16.3 mm
  • Material Zinc Plated Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • WASCA 1000454
  • 91113A035
  • WASCA WLISZNP58
