Miniature Bearings Australia
W0159-LE-027-013-CZ - Datasheet
MBA
Category Information

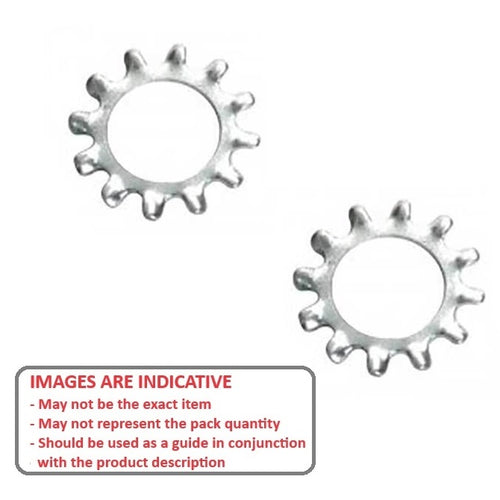

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data

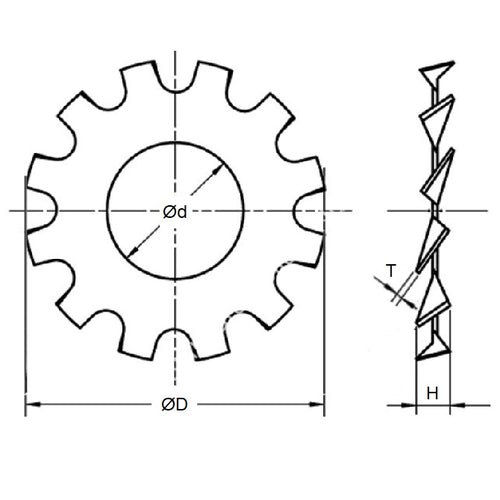

- Nominal Inside Diameter : 15.88 mm
- Outside Diameter 27.2 mm
- Material Thickness (T) 1.30 mm
- Nominal Screw Size 5/8
- Actual ID (Ref) 16.3 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000474
- 91114A035
- WASCA WLESZNP58
