Miniature Bearings Australia
CP-159-191-38-057-R1-SC - Datasheet
MBA
Category Information

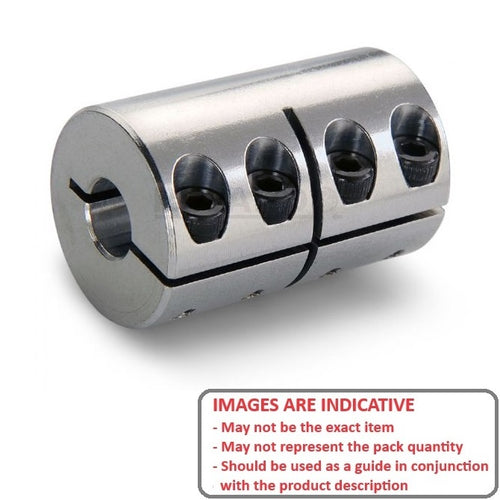

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

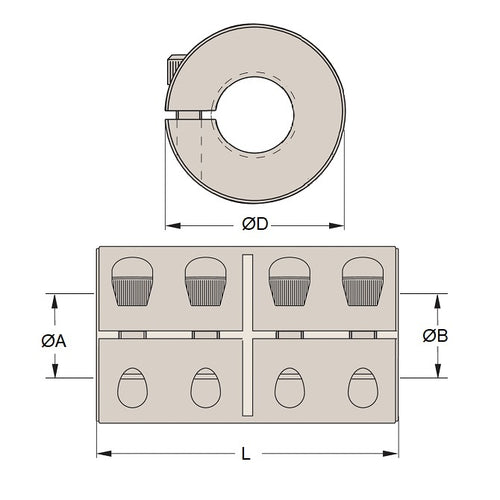

- Bore (b1)
:
15.875
mm
(Equiv. 0.625 in.) - Bore (b2)
19.050
mm
(Equiv. 0.75 in.) - OD (D)
38.100
mm
(Equiv. 1.5 in.) - Length (L) 57.150 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 61005K544
- CC309
- CC-309
