CP-159-159-33-051-R1-SC - Datasheet
MBA
Category Information
Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.

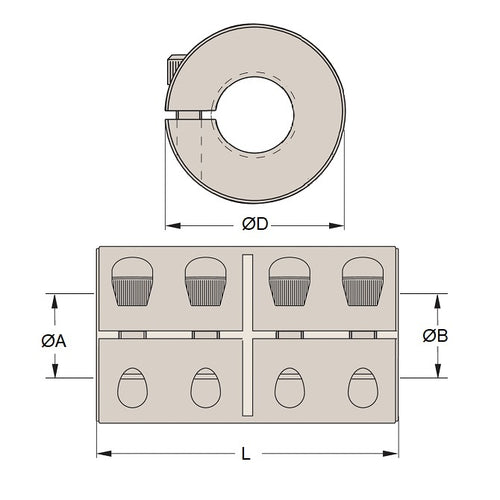

Product Data
- Bore (b1)
:
15.875
mm
(Equiv. 0.625 in.) - Bore (b2)
15.875
mm
(Equiv. 0.625 in.) - OD (D)
33.338
mm
(Equiv. 1.313 in.) - Length (L) 50.800 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 61005K344
- CC307
- CC-307
