REM-159-R-CN - Datasheet
MBA
Category Information

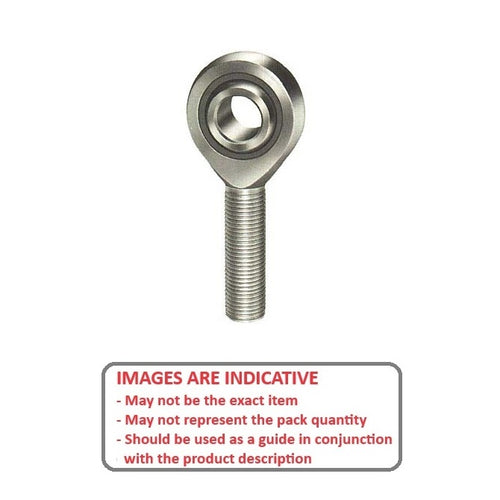

Rod Ends - Male - Steel - Nylon RacewayNylon Raceway Steel Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
15.875
mm
(Equiv. 0.625 in.) - Overall Length (L)
85.73
mm
(Equiv. 3.375 in.) - Thread Size 5/8-18 UNF Right
- Min. Thread Length (l2) 41.28 mm
- Head Width (W) 14.28 mm
- Eye Width (W1) 19.05 mm
- Head Diameter (D) 38.10 mm
- Centre Height (l1) 66.68 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPM-10
- SPM10
