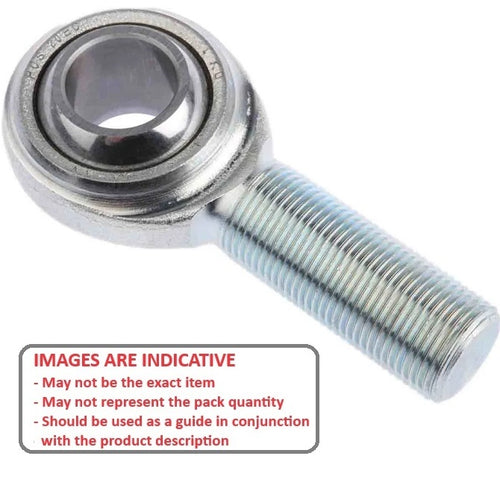

REM-159-R-CT - Datasheet
MBA
Category Information
Rod Ends - Male - Steel - Tight Fit PTFE LinedTight Fit PTFE Lined Steel Male Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
15.875
mm
(Equiv. 0.625 in.) - Overall Length (L)
85.73
mm
(Equiv. 3.375 in.) - Thread Size 5/8-18 UNF Right
- Min. Thread Length (l2) 41.28 mm
- Head Width (W) 14.27 mm
- Eye Width (W1) 19.05 mm
- Head Diameter (D) 38.10 mm
- Centre Height (l1) 66.68 mm
- Material Steel PTFE Lined
Product Compliance and Data
Additional Resources
Cross References
- 2458K17-RIGHT
- KWK TMB10
- 2458K17RIGHT
- EM-10T
- EM10T
