CP-159K-159K-38-051-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : 15.875 (Keyed) mm
    (Equiv. 0.625 in.)
  • Bore (b2) Keyed 15.875 mm
  • OD (D) 38.100 mm
    (Equiv. 1.5 in.)
  • Length (L) 50.800 mm
  • Features 4.763 Keyway
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K133
    • CC-107
    • CC107
    View full details

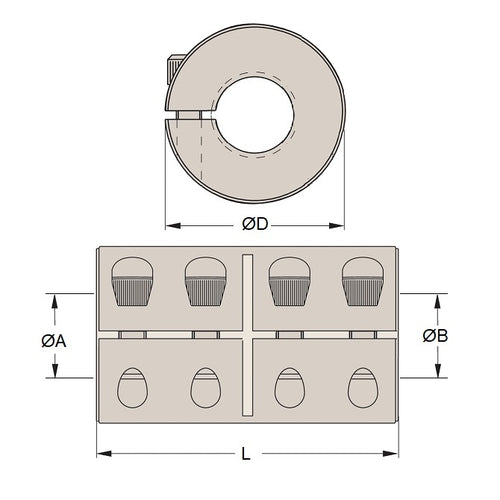

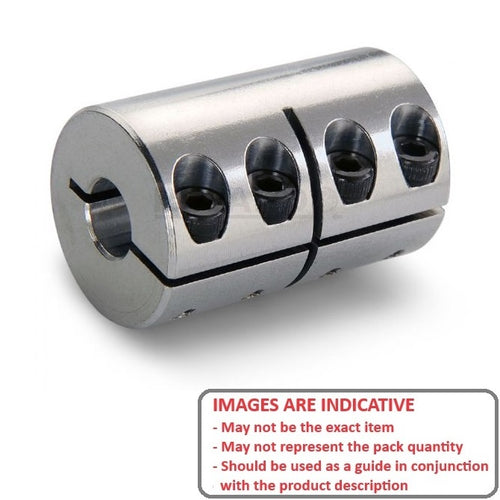

    CP-159K-159K-38-051-R1-SCDiagramCP-159K-159K-38-051-R1-SCImage
