LCHP-0159-076-TSS - Datasheet
MBA
Category Information

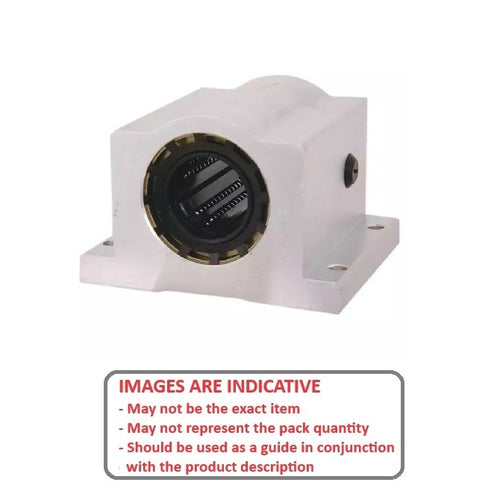

Linear - Thomson Super Smart Housings - Twin Pillow Block - ClosedClosed Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

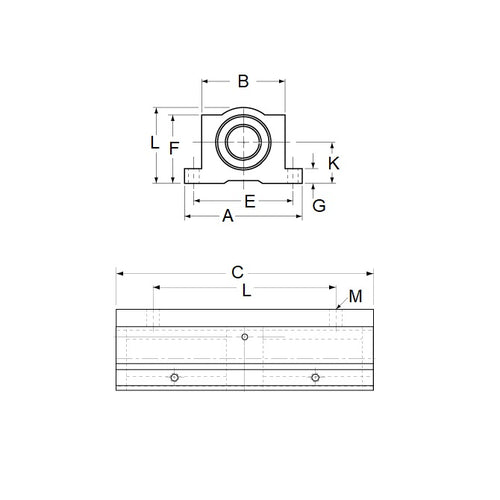

- Nominal Diameter
:
15.875
mm
(Equiv. 0.625 in.) - Overall Length (C)
63.500
mm
(Equiv. 2.5 in.) - Height (B)
44.450
mm
(Equiv. 1.75 in.) - Width (A) 101.600 mm
- Bolt Centres (D) 63.500 mm
- Bolt Width (E) 53.975 mm
- Height (F) 36.576 mm
- Flange Thickness (G) 7.112 mm
- Hole Diameter (J) 4.826 mm
- Centre Height (K) 22.225 mm
- Overall Height (L) 41.402 mm
- Dynamic Load Capacity 562.454 kgf
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWN-10
- SSUTWN10
- TLM-1010
- TLM1010
