BFM-625-B - Datasheet
MBA
Category Information

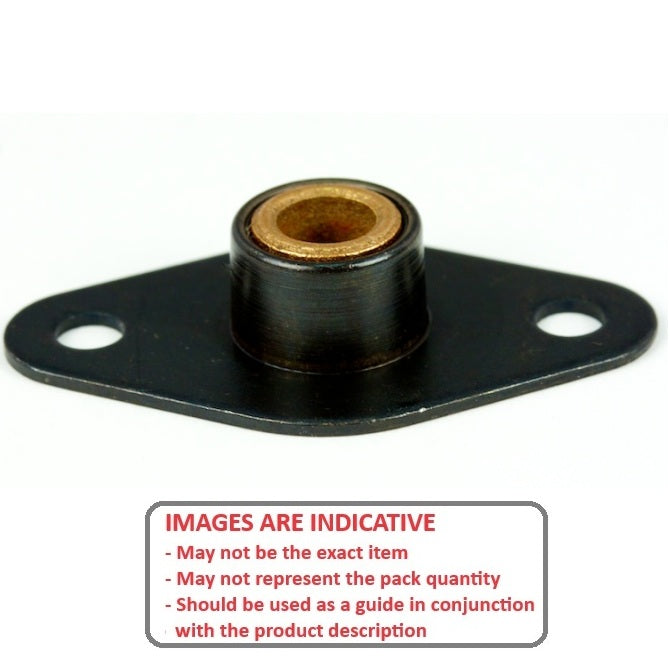

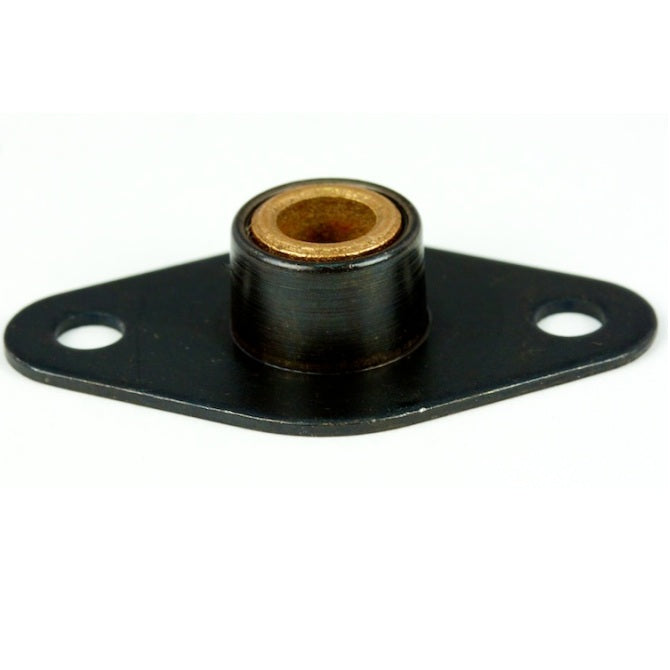

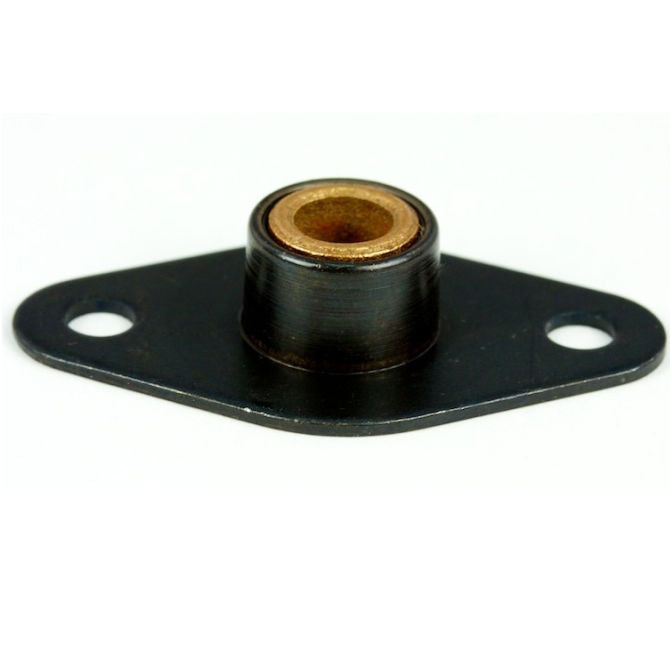

Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered BronzeSintered Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted sintered bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
15.875
mm
(Equiv. 0.625 in.) - Width (W)
59.69
mm
(Equiv. 2.35 in.) - Overall Length (A)
27.78
mm
(Equiv. 1.094 in.) - Overall Height (E) 39.62 mm
- Min to Max Shaft Dia. 15.900 to 15.926 mm
- Max. Radial Dynamic Load 3959 N
- Bolt Hole Centres (L) 45.21 mm
- Max Speed 6110
- Material Sintered Bronze SAE 840
Product Compliance and Data
Additional Resources
Cross References
- 5912K17
