P-R10D-PKS6 - Datasheet
KMS
Category Information

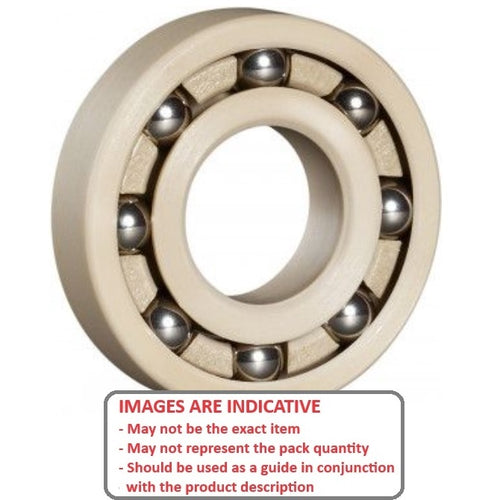

Bearings - Plastic - PEEK - 316 Stainless Balls316 Stainless Balls PEEK Plastic Bearings. PEEK (Polyetheretherketone), is a high temperature, high-performance engineering polymer.
- Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
- These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
- Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
- Races made from PEEK - Balls made from Ground Glass - Cages from PEEK
- PEEK offers chemical and water resistance similar to PPS (Polyphenylene Sulfide) but can operate at higher temperatures
- PEEK can be used continuously to 338 Deg F (170 Deg C) and in hot water or steam without permanent loss in physical properties.
- Wear, Chemical & Hydrolysis Resistant. Exceptional performance over a wide range of temperatures and extreme conditions.
- Low Smoke and Toxic Gas Emission.
Product Data
- ID (d)
:
15.875
mm
+ 0.076 / - 0.000
(Equiv. 0.625 in.) - OD (D)
34.925
mm
+ 0.000 / - 0.102
(Equiv. 1.375 in.) - Width (B)
11.112
mm
+ 0.127 / - 0.000
(Equiv. 0.437 in.) - Max RPM in Air 1283
- Notes Unlubricated
- Type Radial
- Dynamic Load Rating 38.8 Kg
- Static Load Rating 30.4 Kg
- Material PEEK with Stainless Steel 316 Balls
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- KMS PKR10B-5/8B-6
- PKR10B5/8B6
- R10D
- PR10DPS6
