0R-0159-0305-HCS-T26 - Datasheet

MBA

Category Information

Shafting - Precision Ground - High Carbon Steel

High Carbon Steel Precision Ground Shafting. Precision ground shafting. AISI C1060. Hardened and recommended for use with precision bearings.

  • An expanded range may be available on special order. Please enquire.
  • Centreless ground

Product Data

  • Diameter (d) : 15.875 mm - 0.013 / - 0.026
    (Equiv. 0.625 in.)
  • Length (L) 304.8 mm
    (Equiv. 12 in.)
  • Material C1060 Case Hardened Steel
  • Surface Finish 0.30 um Microns
  • Hardness HRC 60-63
  • Ends Finished and Chamfered
  • Material High Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 1555T18-1FT
  • Thompson QS5-8Lx12
  • 1555T181FT
  • TLM1539
  • TLM-1539
  • QS58Lx12
View full details

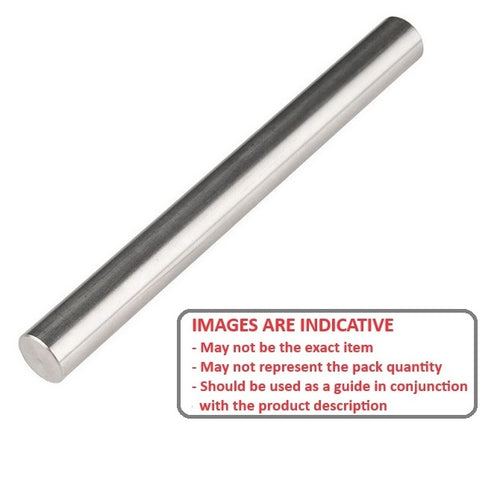

0R-0159-0305-HCS-T26Diagram0R-0159-0305-HCS-T26Image
