NCF10RS - Datasheet

MBA

Category Information

Cam Followers - Bronze Bushing Self Lubricating

Bronze Bushing Self Lubricating Cam Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 15.875 mm
    • Length 30.163 mm
    • Thread (F) 1/4-28 UNF
    • Thread Length (E) 7.925 mm
    • Roller Width (B) 11.113 mm
    • Material Steel and Bronze
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® NCF-10
      • NCF10
      View full details

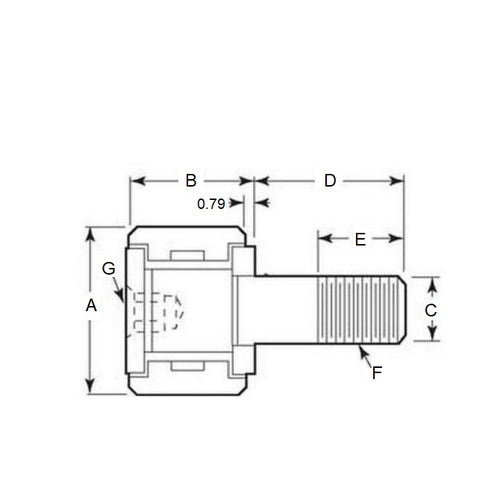

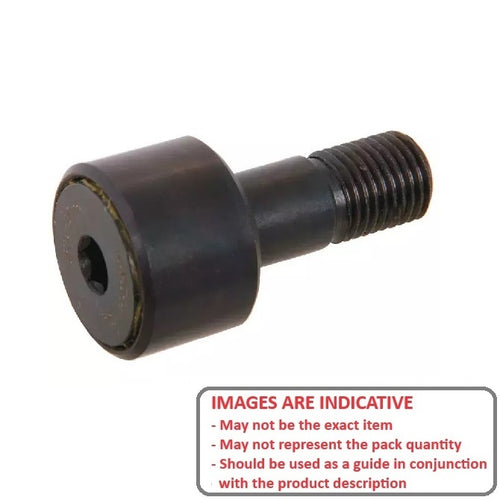

      NCF10RSDiagramNCF10RSImage
