TLM-1951RS - Datasheet
MBA
Category Information

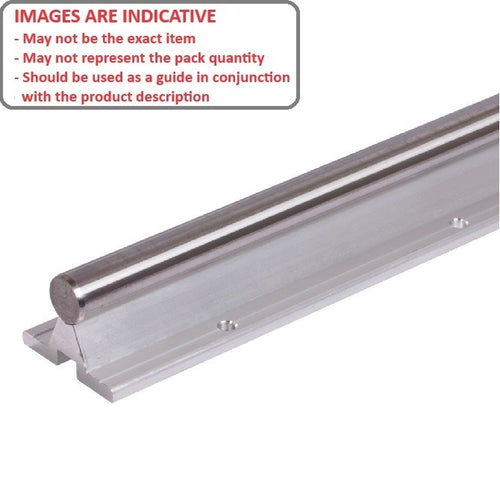

Linear - Rail Supports - With Shaft - StandardStandard With Shaft Rail Supports Linear. Includes linear shafting.
- Includes shaft to h6 tolerances.
- Support is made from aluminium

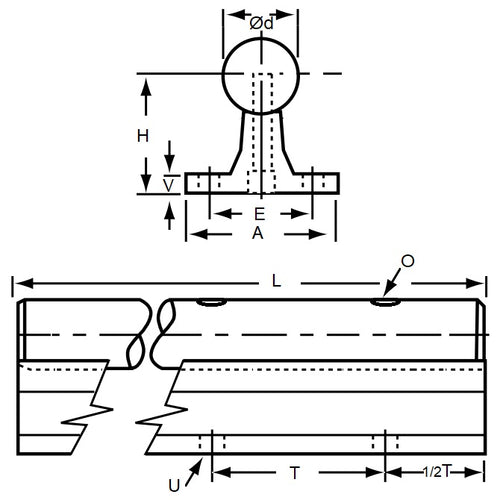

Product Data
- Suitable Shaft Size (d) : 15.875 mm
- Height to Shaft Centre (H) 28.58 mm
- Length (+0/-1.59mm) 609.6 mm
- Foot Height (V) 6.350 mm
- Base Width (A) 41.4 mm
- Support Angle (a) 20 °
- Hole Spacing (T) 101.6 mm
- Base Mtg. Hole (U) 4.826 mm
- Shaft Mtg. Hole (O) 4.826 mm
- Bolt Hole Centres (E) 28.7 mm
Product Compliance and Data
Additional Resources
Cross References
- 59585K89
