MAG-D-16-013-C3T - Datasheet
MBA
Category Information

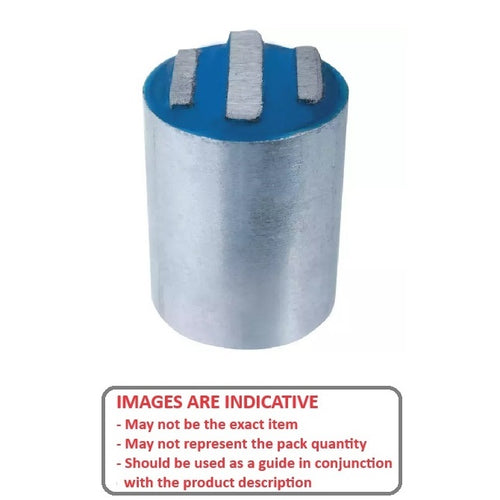

Magnets - 3 Pole - Ceramic Insulated Aluminium Tapped Blind HoleCeramic Insulated Aluminium Tapped Blind Hole 3 Pole Magnets. Extended poles can be lightly machined. With tapped blind hole in base for mounting. Insulated aluminium casing.
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions

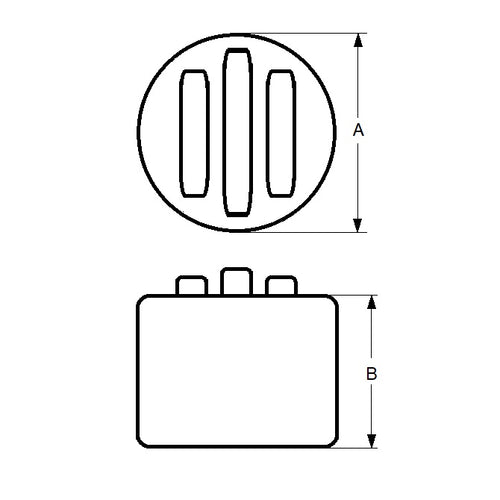

Product Data
- Diameter
:
15.875
mm
(Equiv. 0.625 in.) - Length
12.7
mm
(Equiv. 0.5 in.) - Pull 3.6 kg
- Tapped Hole Size 8-32 UNC (4.17mm)
- Hole Depth 4.8 mm
Product Compliance and Data
Additional Resources
Cross References
- MAG-100
- MAG100
