ED9ARS - Datasheet

ACE

Category Information

Shock Absorbers - Hydraulic - Self-Compensating

Self-Compensating Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 15.75 mm
      (Equiv. 0.62 in.)
    • Thread (C) 9/16-18 UNF
    • Length (A/F) 107.19 / 81.28 mm
      (Equiv. 4.22 in.)
    • Shaft Diameter (D) 4 mm
    • Bore 7 mm
    • Max. Shock Force 283 KG
    • Max. Propelling Force 91 KG
    • Nom. Coil Spring Force Exten 0 KG
    • Nom. Coil Spring Force Compres 1 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-9A
      • ED9A
      View full details

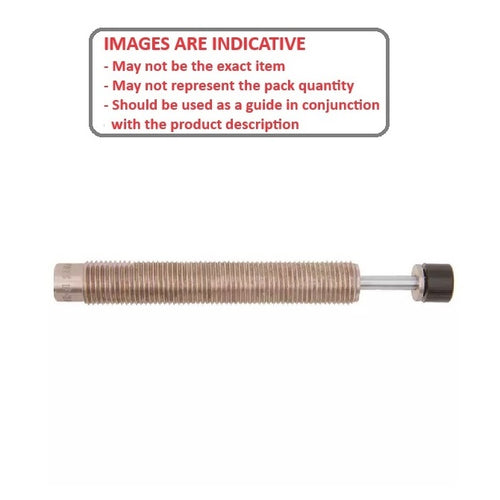

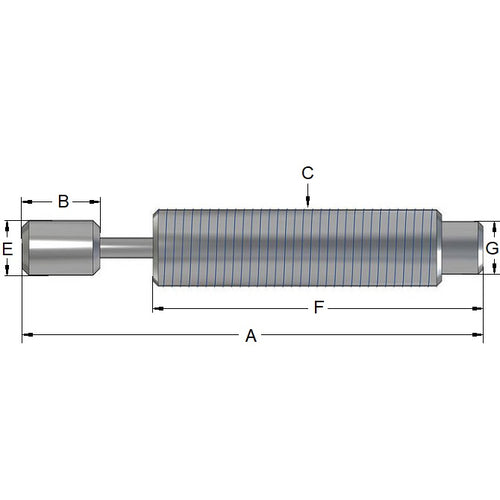

      ED9ARSDiagramED9ARSImage
