ED8ARS - Datasheet
ACE
Category Information

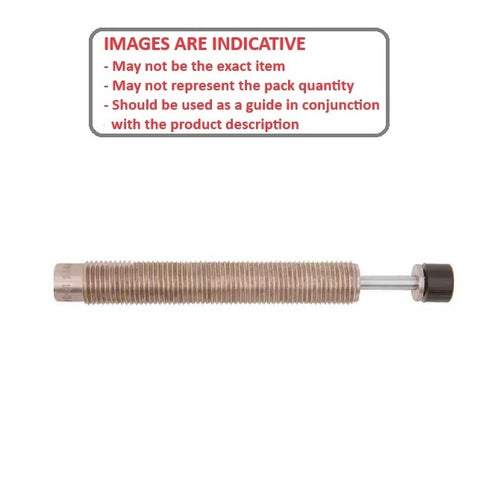

Shock Absorbers - Hydraulic - Self-CompensatingSelf-Compensating Hydraulic Shock Absorbers. This is the main category in this series
Product Data

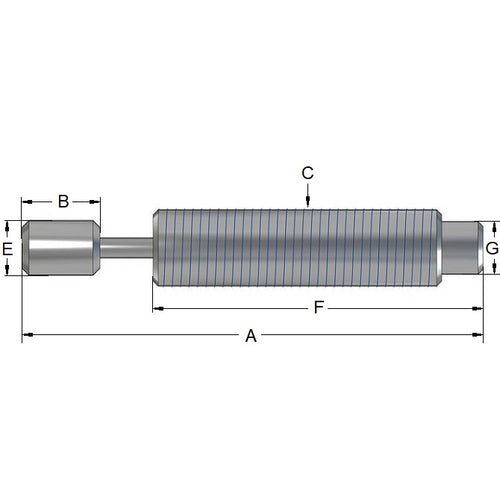

- Stroke : 15.75 mm
- Thread (C) 1/2-20 UNF
- Length (A/F) 107.19 / 81.28 mm
- Shaft Diameter (D) 4 mm
- Bore 7 mm
- Max. Shock Force 283 KG
- Max. Propelling Force 91 KG
- Nom. Coil Spring Force Exten 0 KG
- Nom. Coil Spring Force Compres 1 KG
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® ED-8A
- ED8A
