PWL-150-ST - Datasheet

MBA

Category Information

Ratchets and Pawls - Pawls

Pawls Ratchets and Pawls. Used with ratchets listed on this site.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (t) : 15 mm
  • Overall Length (L) 67.5 mm
  • Mounting Hole Diameter 10.00 mm H8
    (Equiv. 0.394 in.)
  • Swivel Radius (R) 12.5 mm
  • Hole Centre (c) 55
  • Type Type 2
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • A1C14M25515
    View full details

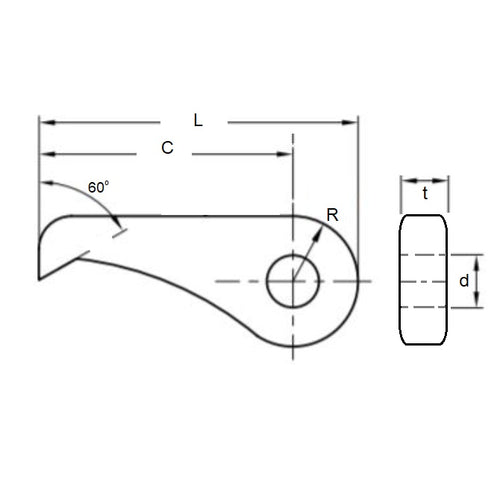

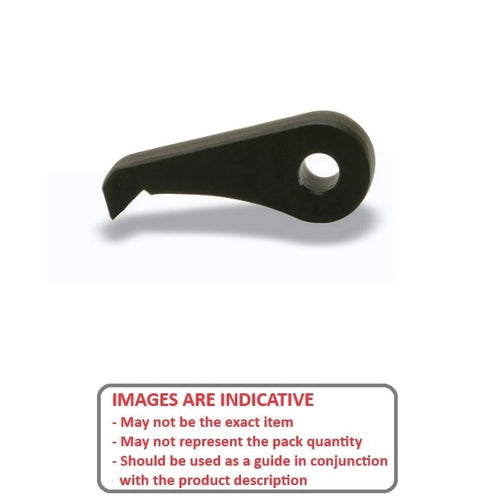

    PWL-150-STDiagramPWL-150-STImage
