Miniature Bearings Australia

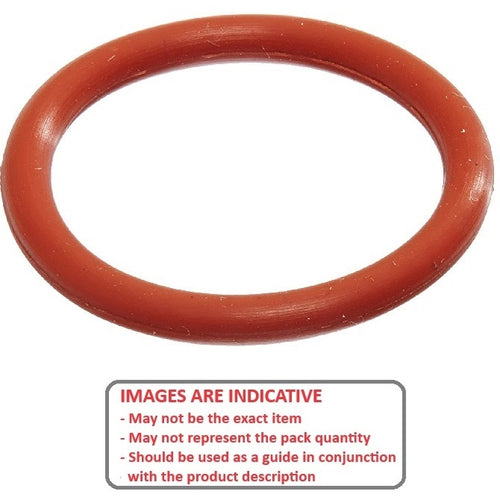

OR-01554-262-S70-114-R - Datasheet
MBA
Category Information
O-Rings - Silicone RubberSilicone Rubber O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food appliactions.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance.
- Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
Product Data
- Inside Diameter (ID)
:
15.54
mm
(Equiv. 0.612 in.) - Section (t)
2.62
mm
(Equiv. 0.103 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N56
- Small Parts ORS-114
- BS114SIL70
- BS114-SIL70-RED
- BS114SIL70RED
- ORS114
