5202 - Datasheet

MBA

Category Information

Bearings - Angular Contact - Double Row Ball - Chrome Steel

Chrome Steel Double Row Ball Angular Contact Bearings. Double Row Ball Bearings - Angular Contact.

  • These bearings have four points of contact between the balls and the raceways, allowing them to accommodate thrust loads in addition to radial loads.
  • These bearings have raceways in the inner and outer rings that are offset to each other and are inclined at an angle to the bearing axis.
  • Angular contact bearings are used in various applications where precise rotation, high-speed performance, and load-carrying capacity are required. An expanded range may be available on special order. Please enquire.

Product Data

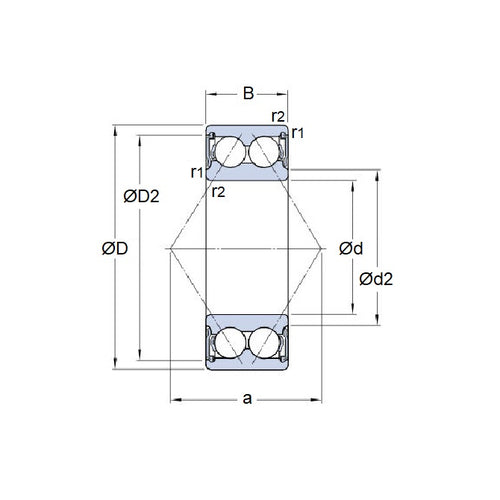

  • ID (d) : 15.000 mm
    (Equiv. 0.591 in.)
  • OD (D) 35.000 mm
    (Equiv. 1.378 in.)
  • Width (B) 15.900 mm
    (Equiv. 0.626 in.)
  • Precision Grade Abec 1
  • Closure Type Open
  • Bearing Type Double Row Angular Contact
  • Material Chrome Steel SAE 52100
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • IJK 5202
