Miniature Bearings Australia
NAST15R - Datasheet
MBA
Category Information

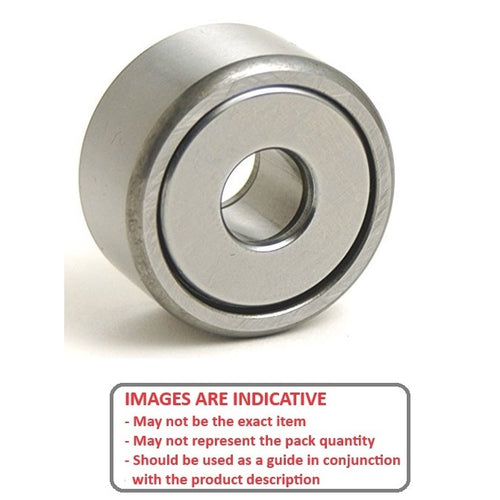

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

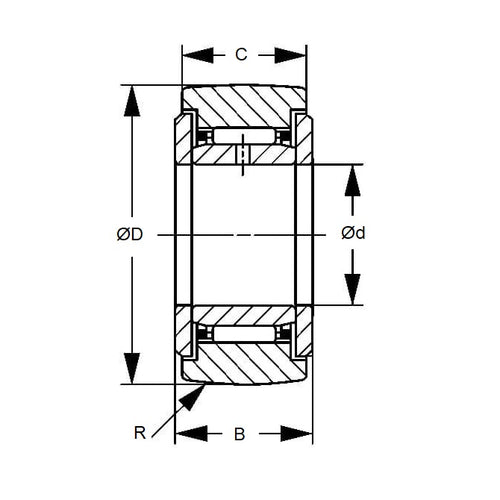

- ID (d)
:
15.00
mm
(Equiv. 0.591 in.) - OD (D)
35.00
mm
(Equiv. 1.378 in.) - Width (C)
11.80
mm
(Equiv. 0.465 in.) - Inner Ring Width (B) 12.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 1260.00 kgf
- Static Load Rating 1460.00 kgf
- Closures None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NAST-15R
- NAST15R
